Ready-to-use servo system brushless solution based on STSPIN32F0A, mainly used in robotics and automation

EVALKIT-ROBOT-1

Overview

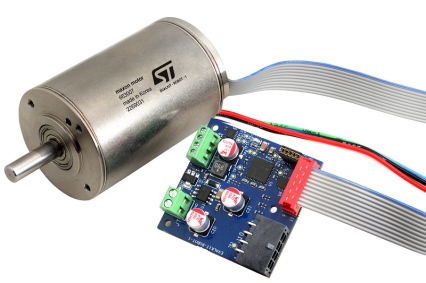

The EVALKIT-ROBOT-1 is an evaluation kit offering a ready-to-use servo brushless solution.

Thanks to the high integration level of the STSPIN32F0A, the control board provides a powerful power stage, the analog circuitry implementing current sensing and overcurrent protection and a Cortex-M0 microcontroller performing a Field-Oriented Control with closed-loop positioning. All packed into a 40 mm x 40 mm footprint.
The maxon EC-i 40 motor, thanks to the optimized magnetic circuit, offers a very high torque density and very low cogging torque. In combination with the maxon ENX 16 EASY 1024 pulses incremental encoder, it is an excellent choice for reliable, robust and high-precision position and speed control.

Main features

36 V/6 A_peak power stage
STSPIN32F0A advanced 3-phase motor controller embedding Cortex-M0 MCU
STL7DN6LF3 60 V, 35 mΩ Dual N-channel MOSFETs
Hall sensors
Position control loop based on Field Oriented Control
MODBUS communication protocol through RS-485
Extremely compact footprint (40 mm x 40 mm)
maxon EC-i 40 100 W 3-phase brushless DC motor
maxon ENX 16 EASY 1024-pulse incremental encoder
