Low Power Motor Control Board with SLLIMM™ STGIPN3H60 and MCU STM32F100C6T6B

STEVAL-IHM036V1

Overview

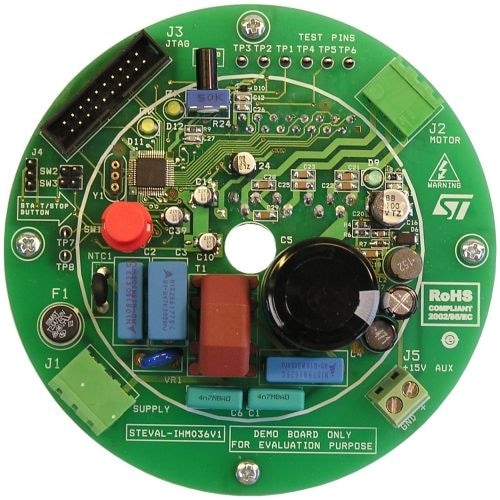

The purpose of the STEVAL-IHM036V1 demonstration board is to present a universal, fully-tested design consisting of a 3-phase inverter bridge based on the 600 V, 3 A small low-loss intelligent molded module (SLLIMM^™) STGIPN3H60 and the STM32F100C6T6B MCU.

The SLLIMM™ consists of short-circuit rugged IGBT’s with negative temperature coefficient. Additional auxiliary functions are undervoltage lockout and smart shut-down.
Thanks to these advanced characteristics the system achieves fast and accurate conditioning of the current feedback, rendering it capable of meeting the typical requirements for field-oriented control (FOC).

Main features

Complete 100 W power inverter solution
HV supply: 90 to 285 V AC or direct DC at 125 to 400 V DC
Input inrush limiter based on NTC resistor
Single shunt resistor current-sensing method
Overtemperature and overcurrent hardware protection
Compact and safe design
Test points available to allow further evaluation
RoHS compliant
