300W peak power (170W continuous power) LLC resonant converter based on L6699, STB13N60M2 and STPS20M80CG

STEVAL-ISA132V1

Overview

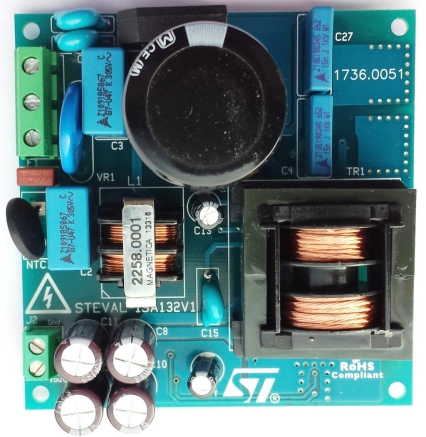

The STEVAL-ISA132V1 evaluation board implements a converter capable of delivering 170 W of continuous power (V_IN = 190 VAC to 264 VAC, V_OUT = 24 V) and more than 300 W peak power for a limited time. The architecture of the board is based on a single-stage LLC resonant converter without PFC using the new L6699 resonant controller. The L6699 integrates some very innovative functions such as self-adjusting adaptive dead-time, anti-capacitive mode protection and proprietary “safe-start” procedure preventing hard switching at startup. High efficiency at full load (> 92%) and no load (< 0.6 W) is obtained thanks to the STB13N60M2 (600 V, 0.35 W typ., 11 A) MDmesh M2 power MOSFET in the half-bridge, and the STPS20H100CG (V_RRM = 100 V, I_F(AV) = 2 x 10 A) Schottky diode for secondary rectification.

Main features

Input mains range: 190 to 264 VAC - frequency 50 Hz
Output voltage: 24 V 5%
No-load consumption:
Efficiency @ 230 VAC > 92%
EMI: within EN55022 Class-B limits conducted pre-compliance
Safety: meets EN60950-1
Dimensions: 90 x 90 mm, 50 mm component maximum height

Safe startup procedure to avoid hard switching
Hard switching prevention in overload condition and low load condition
Burst mode in low load condition with smooth restart to prevent audible noise
Evaluation board can deliver more than 300 W peak power for a limited time by a thermal protection NTC positioned near output diodes
Continuous power at 30 °C ambient temperature:170 W
The power MOSFETs and diodes are both in D²PAK packages
RoHS compliant
