High voltage evaluation board for PWD13F60

EVALPWD13F60

Overview

The PWD13F60 is a high density power driver integrating gate drivers and four N-channel power MOSFETs in dual half-bridge configuration.

The integrated power MOSFETs have a low R_DS(on) of 320 mΩ and 600 V drain-source breakdown voltage, while the embedded gate drivers high-side can be easily supplied by the integrated bootstrap diode. The high integration of the device allows loads in a tiny space to be driven efficiently.
The PWD13F60 accepts a supply voltage (V_CC) extending over a wide range and is protected by a low voltage UVLO detection on the supply voltage.
The input pin extended range allows easy interfacing with microcontrollers, DSP units or Hall effect sensors.

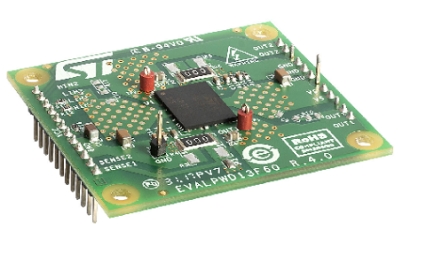

The EVALPWD13F60 is 48 x 53 mm wide, FR-4 PCB resulting in an R_th(J-A) of 18 °C/W, capable to drive loads up to 2 A_RMS, without forced airflow cooling.
Both controlling and power signals are available on pin strip for easy connection to customer's board.

Main features

Power system-in-package integrating gate drivers and high-voltage power MOSFETs:
- Low R_DS(on) = 320 mΩ
- BV_DSS = 600 V
Suitable for operating as:
- Full-bridge
- Dual independent half-bridges
Wide input supply voltage down to 6.5 V
UVLO protection on supply voltage
3.3 V to 15 V compatible inputs with hysteresis and pull-down
Interlocking function to prevent cross conduction
Internal bootstrap diodes
QFN (10x13 mm) package
Very compact layout
RoHS compliant
