Evaluation board for STM32L073VZ MCU

STM32L073Z-EVAL

Overview

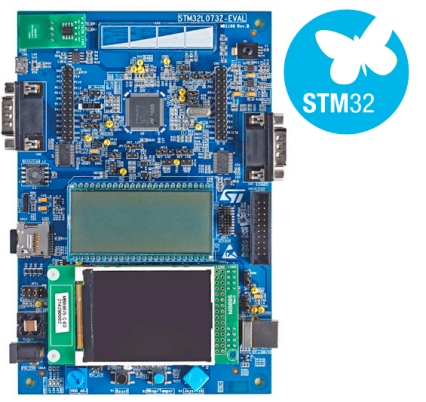

The STM32L073Z-EVAL evaluation board has been designed as a complete demonstration and development platform for the STMicroelectronic’s Arm^® Cortex^®-M0+ core-based STM32L073VZT6 microcontroller with three I²Cs, two SPIs, four USARTs, one UART, one 12-bit ADC, two 12-bit DACs, LCD driver, up to 192-Kbyte Flash memory, 20-Kbyte RAM, 6-Kbyte EEPROM, touch sensing, USB FS, LCD controller, SWD debugging support.

The full range of hardware features on the board can be used to evaluate all peripherals (USB FS, RS-232, USART, 12-bit ADC and DAC, color LCD-TFT, LCD glass, low-power UART, IrDA, microSD™ card, touch sensing slider, pressure measurement, temperature measurement, LC sensor metering) and develop user’s applications. The extension headers make it possible to easily connect a daughter board or a wrapping board specific application.
An ST-LINK/V2-1 is integrated on the board as embedded in-circuit debugger, programmer for the STM32 MCU and USB Virtual COM Port bridge.

Main features

STM32L073VZI6 ultra-low-power Arm^® Cortex^® core-based microcontroller featuring 192 Kbytes of Flash memory and 20 Kbytes of RAM in LQFP100 package
Four 5 V power supply options: power jack, ST-LINK USB connector, user USB FS connector, or daughterboard
Selectable MCU voltage: 3.3 V or adjustable from 1.71 V to 3.6 V
2.8-inch color LCD-TFT with resistive touchscreen
LCD glass 40 x 8 segments
On-board current measurement
IrDA transceiver
Pressure sensor
LC sensor metering

Touch sensing linear sensor
User and reset push-buttons
4-direction joystick with selection button
Board connectors:
- 2 RS-232 with DB9
- USB with Micro-B
- microSD™ card
Board expansion connectors:
- RF-EEPROM daughter board
- Extension connector for daughter board or wrapping board
On-board ST-LINK/V2-1 debugger/ programmer with USB re-enumeration capability: mass storage, virtual COM port and debug port
Comprehensive free software libraries and examples available with the STM32Cube package.
Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil^® and GCC-based IDEs

Design Files
