L6563H and L6599A based 19V-90W adapter with PFC for portable computer applications

STEVAL-ISA148V1

Overview

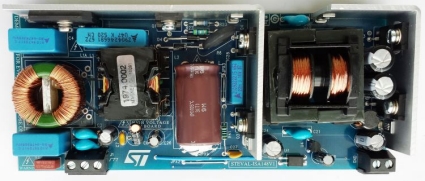

The STEVAL-ISA148V1 is a 90 W, wide range mains, power factor corrected, AC-DC adapter system evaluation board. Its electrical specification is tailored on a typical Hi-end portable computer power adapter.

The architecture is based on a two-stage approach, a front-end PFC pre-regulator based on L6563H TM PFC controller and a downstream LLC resonant half-bridge converter using new L6599A resonant controller. Thanks to the chipset used, the main characteristics of this design are very high efficiency compliance with ENERGY STAR® Eligibility Criteria (EPA rev. 2.0 EPS) and very low input consumption at no-load (< 0.3 W).

Main features

Universal input mains range: 90 - 264 VAC - frequency 45 - 65 Hz
Output voltage: 19 V at 4.75 A continuous operation
Mains harmonics: ACC. to EN61000-3-2 Class-D or JEITA-MITI Class-D
Standby mains consumption:
Efficiency at nominal load: Better than 90% at full load
EMI: In accordance with EN55022-Class-B
Safety: In accordance with EN60950
Dimensions: 65 x 151 mm, 25 mm component maximum height
PCB: double side, 70 µm, FR-4, mixed PTH/SMT
RoHS compliant
