EVAL-TDA785x Evaluation Board for STPA001, STPA003, STPA008, TDA7851A, TDA7850A and TDA7388A

EVAL-TDA785X

Overview

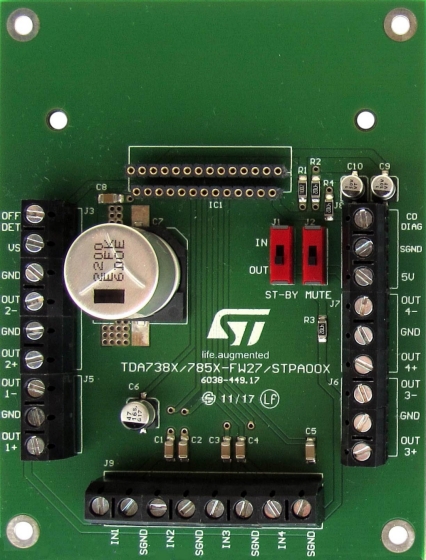

EVAL-TDA785X is an evaluation board for automotive class AB power amplifiers. It is compatible with the following list of MOSFET amplifiers: STPA001, STPA003, STPA008, TDA7851A, TDA7850A, and the TDA7388A BIPOLAR amplifier.

Main features

Analog input, analog output
Four audio channels
Clipping / Offset detector outputs pins available
Stand-by and mute switches
Compatible with Flexiwatt27 package
Operating supply voltage from 6 to 18 V (battery compatible)

Design Files

EVAL-TDA785X evaluation board
