4A, 850kHz fixed frequency PWM synchronous buck demonstration board based on ST1S41

STEVAL-ISA108V1

Overview

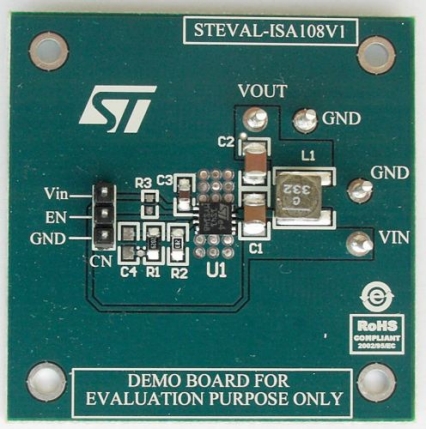

Based on the ST1S41 step-down switching regulator, the STEVAL-ISA108V1 demonstration board is an internally-compensated 850 kHz fixed-frequency PWM synchronous step-down converter.

The ST1S41 operates from 4.0 V to 18 V input, while it regulates an output voltage as low as 0.8 V and up to V_IN(100% duty cycle).
The ST1S41 integrates a 95 mΩ high side switch and 69 mΩ low side synchronous rectifier, resulting in very high efficiency with very low output voltages.
The peak current mode control with internal compensation offers a compact solution with a minimum component count.

Main features

4 to 18 V input voltage
Output voltage adjustable from 0.8 V
850 kHz switching frequency
Internal soft-start
Integrated 95 mΩ and 69 mΩ power MOSFETs
All ceramic capacitor
Enable function
Cycle-by-cycle current limiting
Current fold-back short-circuit protection
RoHS compliant
