Evaluation board based on ST1PS01AJR 400 mA nanostatic synchronous buck converter

STEVAL-1PS01AJR

Overview

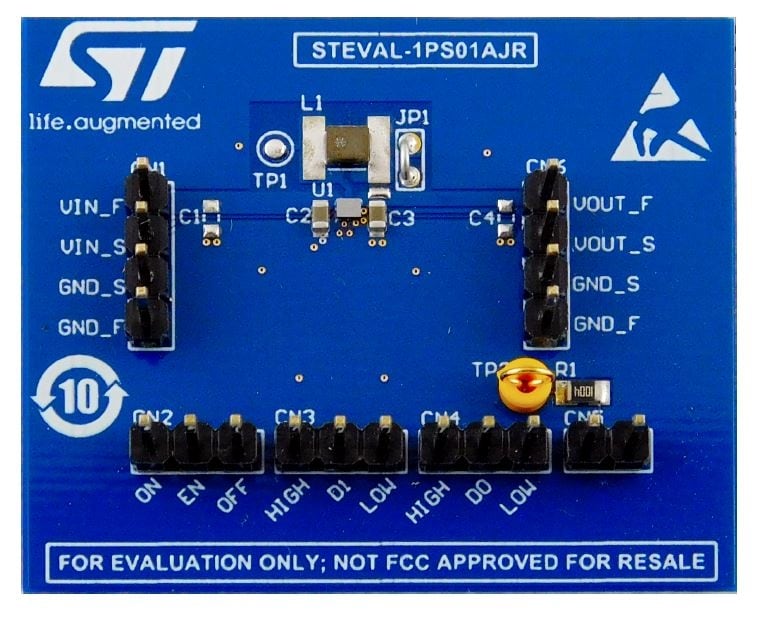

The STEVAL-1PS01AJR evaluation board features the ST1PS01 miniaturized, nano-quiescent, synchronous step-down converter designed for applications where high efficiency, PCB size and thickness are the key factors. The converter can provide up to 400 mA output current with a 1.8 V to 5.5 V input voltage range. The output voltage can be dynamically adjusted from 1.9 V to 2.8 V using two digital control inputs.

Thanks to the enhanced peak current control (PCC), the ST1PS01 can achieve very high efficiency conversion using only a 2.2 µH inductor and two small capacitors. Furthermore, the converter's advanced design circuitry reduces quiescent current to a minimum.

Main features

1.8 V to 5.5 V input operating range
Up to 400 mA output current capability
Tiny external components: L=2.2 µH typ.
Selectable output voltages: 1.9 V to 2.8 V
Output voltage Power Good
Dynamic output voltage selection (D0, D1)
Suitable for the following applications:
- Wearable applications
- Personal tracking monitors
- Smart watches, sport bands
- Energy harvesting, wireless sensors
- Wearable and fitness accessories
- Industrial sensors, portable low power devices
- Single cell Li-Ion battery applications
- Bluetooth® low energy
- Zigbee
WEEE and RoHS compliant (hardware only)
