1A constant current DC/DC converter evaluation board based on L6902D

STEVAL-ISA155V1

Overview

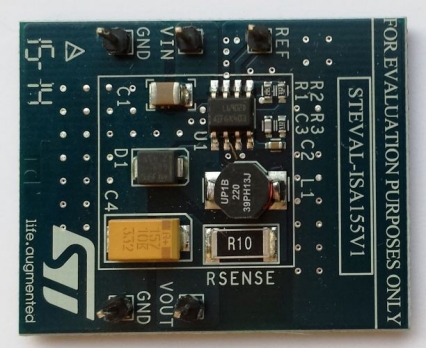

The STEVAL-ISA155V1 product evaluation board integrates the L6902D step-down switching regulator with adjustable current limit, together with the external components required for a typical application.

The input voltage of the board can range from 8 V up to 25 V due to the rated voltage of the input capacitor and the Schottky rectifier repetitive peak reverse voltage (both 25 V). The external resistor divider (R1 and R2) sets the output voltage of the application board to 3.3 V. A different output voltage can be regulated from 1.235 V up to 10 V, the rated voltage of the output capacitor. A current limit of 1 A is programmed by the 100 mΩ sense resistor (Rsense).
The inductor saturation current and the forward current of the Schottky rectifier fit the current limit setting.

Main features

Up to 1 A output current
Operating input voltage from 8 V to 25 V
Precise 3.3 V (±2%) reference voltage
5% output current accuracy
Output voltage adjustable from 1.235 V to 34 V
250 kHz internally fixed frequency

Voltage feedforward
Zero load current operation
Adjustable current limit
Protection against feedback disconnection
Thermal shutdown
RoHS compliant
