L7987L-Based, 2A Step-Down DC-DC Switching Regulator (VIN = 4.5V to 60V)

STEVAL-ISA198V1

Overview

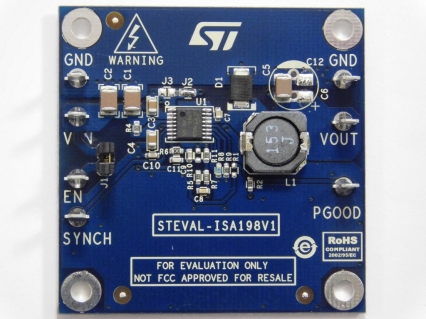

The STEVAL-ISA198V1 product evaluation board is a step-down switching power supply based on the L7987L regulator in an HTSSOP16 package. The output voltage can be set starting from 0.8 V. Low drop-out operation, due to the advanced integrated switch management, can be achieved.

The L7987L is a 61 V, 2 A step-down asynchronous switching regulator with embedded power MOSFET capable of delivering up to 2 A of current, depending on the application conditions.
The embedded switch-over feature on the V_BIAS pin and the light load management (pulse skipping) help maximize power conversion efficiency across the entire load range.
The soft-start, current limit threshold and switching frequency are adjustable for application optimization.
The device includes an internal 250 kHz oscillator that can be externally adjusted up to 1.5 MHz; two L7987L regulators can be synchronized in a 180° out-of-phase configuration for reduced total input RMS current.

Main features

4.5 V to 60 V input voltage
Step-down (buck) conversion
5 V output voltage (V_IN > 6 V)
Up to 2 A DC output current
500 kHz switching frequency
5 ms programmed soft-start
Compliant with ceramic output capacitors
180° out of phase synchronization available
Auto recovery overcurrent and thermal protection
RoHS compliant
