ArgonKey sandwich panels based on different ST sensors

STEVAL-MKI187V1

Overview

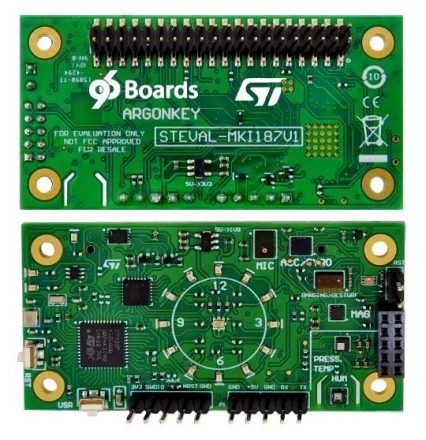

The STEVAL-MKI187V1 is a mezzanine board (also referred to as 96Boards Argonkey) designed according to the Linaro specification. The board acts as a sensor hub platform for all 96Boards compliant products. The board can be used as a standalone board or connected to the HiKey (LeMaker) board from 96Boards. The board has two buttons (Reset and user) and several LEDs that are appropriately positioned for IoT hardware applications.

Main features

The following ST MEMS sensors are mounted:
- LSM6DSL 6-axis inertial module
- LIS2MDL Magnetic sensor
- LPS22HB Pressure sensor
- HTS221 Humidity and Temperature sensor
- MP34DT05-AMicrophone
VL53L0X gesture detector
Based on STM32F412C microcontroller
