SensorTile connectable sensor nodes: plug or solder

STEVAL-STLCS01V1

Overview

The STEVAL-STLCS01V1 (SensorTile) is a highly integrated reference design that can be plugged into form-factor prototypes, adding sensing and connectivity capabilities to new designs through a smart hub solution. It can also easily support development of monitoring and tracking applications like standalone sensor nodes connected to iOS™ or Android™ smartphone applications.

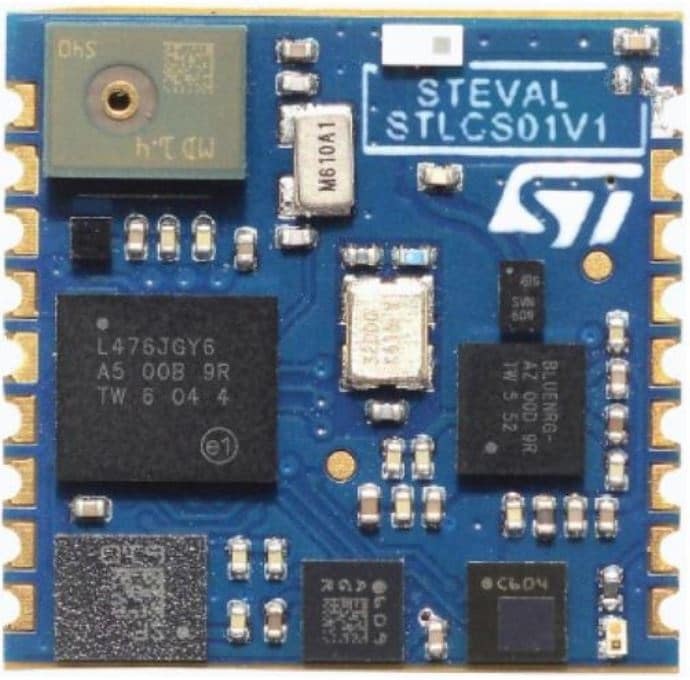

The SensorTile occupies a very small 13.5 x 13.5 mm square outline, with all the electronic components on the top side and a small connector on the bottom side to plug it onto the cradle expansion board. The connector pinout is repeated on 18 PCB pads to render the SensorTile a solderable system on module as well.
Refer to user manual UM2101 Getting started with the STEVAL-STLKT01V1 SensorTile integrated development platform for more information.

Main features

Very compact module for motion, audio, environmental sensing and Bluetooth^® low energy connectivity with a complete set of firmware examples
Mobile connectivity via the STBLESensor app, available for iOS™ and Android™
Main components:
- STM32L476JG – 32-bit ultra-low-power MCU with Cortex^®M4F
- LSM6DSM – iNEMO inertial module: 3D accelerometer and 3D gyroscope
- LSM303AGR – Ultra-compact high-performance eCompass module: ultra-low power 3D accelerometer and 3D magnetometer
- LPS22HB – MEMS nano pressure sensor: 260-1260 hPa absolute digital output barometer
- MP34DT05-A – 64 dB SNR digital MEMS microphone
- BlueNRG-MS – Bluetooth low energy network processor
- BALF-NRG-02D3 – 50 Ω balun with integrated harmonics filter
- LD39115J18R – 150 mA low quiescent current low noise LDO 1.8 V
2 V - 5.5 V power supply range
External interfaces: UART, SPI, SAI (serial audio interface), I²C, DFSDM, USB OTG, ADC, GPIOs
Pluggable or solderable interface
SWD interface for debugging and programming capability

CE certified
RoHS and China RoHS compliant
WEEE compliant
FCC certified
IC certified
TYPE certified
