Portable low-power HD display reference design with higher brightness using DLP® technology

TIDA-01571

Overview

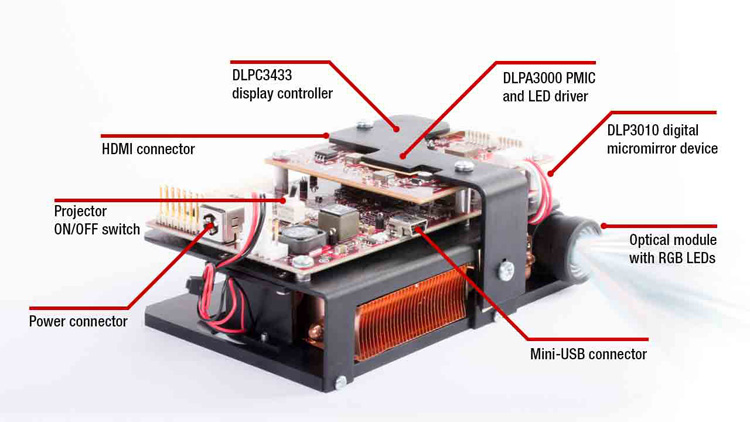

This display reference design uses the DLP Pico™ 0.3-inch TRP HD 720p display chipset and is implemented in the DLP LightCrafter™ Display 3010-G2 Evaluation Module (EVM). This reference design enables high resolution in projection display applications such as mobile smart TVs, virtual assistant mobile projectors, digital signage and more. This design includes the DLP3010 chipset, which consists of the DLP3010 720p digital micromirror device (DMD), DLPC3433 display controller, and DLPA3000 PMIC/LED driver.

characteristic

● 1280x720 resolution
●Brightness is 230 RGB lumens (6A blue/green LED, 4.5A red LED)
● Compact PCB layout, supports 720p (DLP3010) optical engine and includes HDMI and USB connectivity
● Used in DLPDLCR3010EVM-G2 layout
● 19V input and up to 6A LED current drive
● Display configuration can be customized through PC software GUI

Backlog Impt notice changes Backlog Impt notice changes end

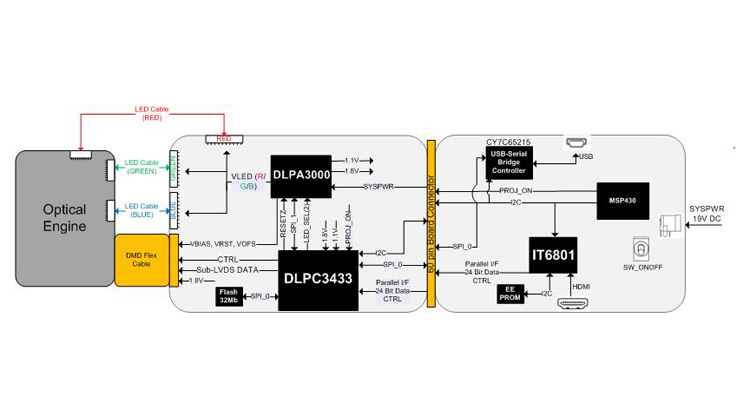

Blockdiagram

Design Files

Documentation

Portable, low-power, high-definition display reference design with higher brightness using DLP® technology
