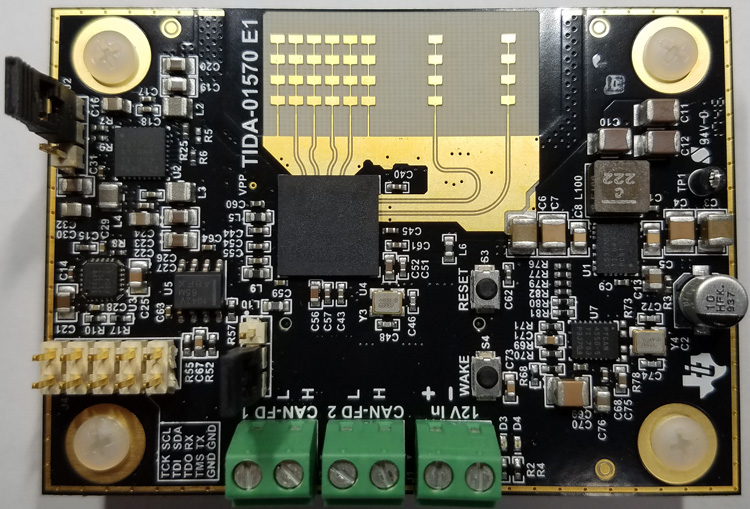

Automotive-grade 77GHz radar module reference design with target data output

TIDA-01570

Overview

The TIDA-01570 reference design is a complete solution for 76 to 81GHz radar sensor modules. The onboard power supply converts the vehicle battery input to the power rails required by the radar AFE, processor and CAN-FD transceiver. After processing, the target data is made available via the included CAN-FD physical layer.

characteristic

● Provides a wide supply voltage range (4V to 14V) for powering coaxial cables
● The car battery can directly provide circuit board power and has reverse current protection function

Backlog Impt notice changes Backlog Impt notice changes end

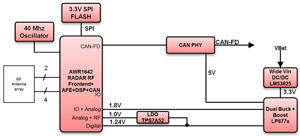

Blockdiagram

Design Files

Documentation

Automotive 77GHz Radar Module Reference Design with Target Data Output

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
