Compact Full HD 1080p (up to 16 Amp) projection display reference design with DLP Pico technology

This reference design features the DLP Pico™ 0.47-inch TRP Full HD 1080p display chipset and is implemented in the DLP LightCrafter Display 4710 G2 Evaluation Module (EVM), supporting use in accessory projectors, screenless displays, interactive displays, wearable devices including Full HD resolution is used in projection display applications such as head-mounted displays, signage, industrial and medical displays. The chipset used in this reference design consists of the DLP4710 (0.47 1080p) DMD, DLPC3439 display controller, and DLPA3005 PMIC/LED driver.

characteristic

• ● DLP Pico™ 0.47-inch TRP Full HD 1080p display chipset reference design consisting of DLP4710 DMD, DLPC3439 controller and fully integrated DLPA3005 PMIC/LED driver.

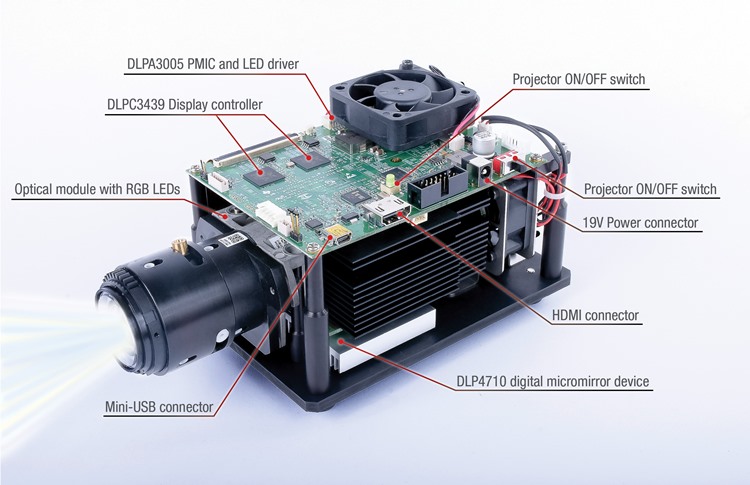

• ● The reference design is implemented and tested on an EVM containing a production-ready optical engine and programmable LED driver (1 - 16 amps) for RGB LEDs.

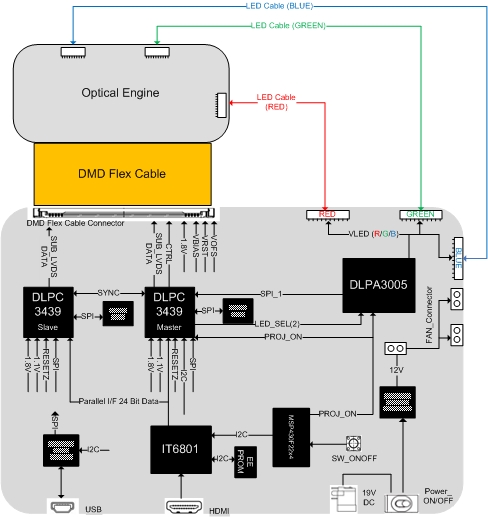

• ● Reference designs include detailed schematics, light painting files, BOMs, user guides and software to help quickly and easily integrate DLP Full HD projection displays into virtually any system.
