KIT08XS6421EKEVB: Evaluation Kit - MC08XS6421EK, Quad Channel High-Side Switch

Overview

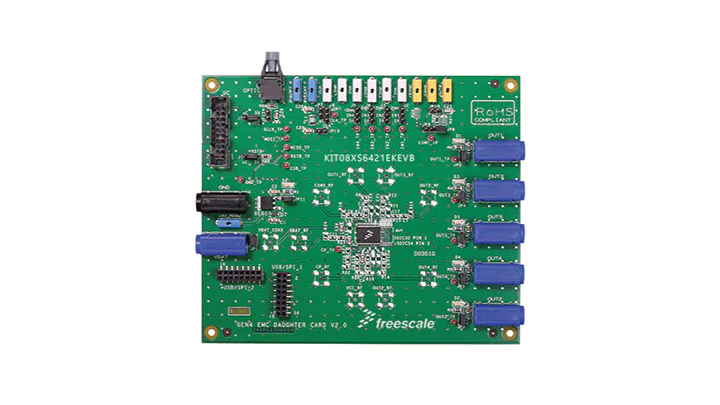

NXP KIT08XS6421EKEVB is a hardware tool for evaluation and development. This evaluation board can be used to evaluate the MC08XS6421. The MC08XS6421 is a 12 V quad-channel high-side device with highly flexible integrated control and extensive protection and diagnostic features.

This device is intended for low-voltage automotive lighting applications and can drive a wide range of lighting sources, including HIB ballasts and LEDs. Programming, control and diagnostics are implemented via a 16-bit SPI interface, enabling a wide range of configuration, diagnostic and protection functions.
