MTRCKTSBNG128: 3-Phase Sensorless BLDC Development Kit Using MC9S12G128 MCU

Overview

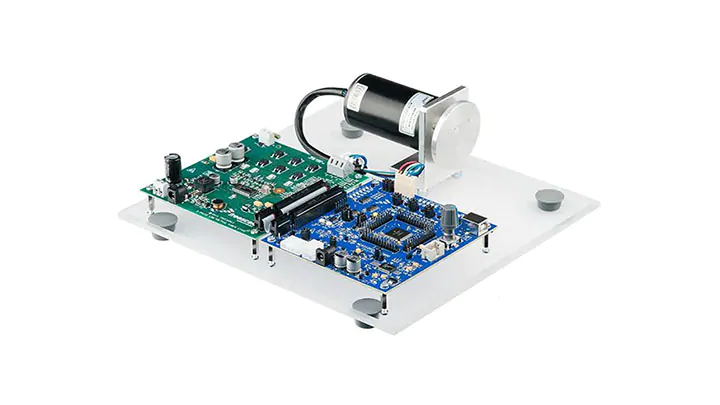

The MTRCKTSBNG128 Motor Control Development Kit is suitable for sensorless and Hall sensor-based applications requiring a BLDC motor control, such as HVAC or electric pumps.

Enables rapid prototyping and evaluation of motor control applications without waiting for final hardware design.
Contains a 16-bit MC9S12G128 based controller board and a 3-phase low voltage power module circuit board.
This application software provides a complete reference implementation of a BLDC motor control application
