WCT-15W1COILTX: 15 W single coil wireless charging transmitter reference design

Overview

^{The WCT-15W1COILTX is a 15 W single coil wireless charging transmitter reference platform} using NXP's MWCT1012CFM transmitter controller IC.

· The IC manages and performs all control functions required to implement a wireless charging transmitter solution.
· This solution is highly optimized to achieve extremely high performance efficiency and effective charging range, while maintaining extremely low bill of materials (BOM) costs.
· Complies with the latest Qi specification of the Wireless Power Consortium (WPC) and can provide a full 15 W power supply to the receiving device.

MoreCollapse

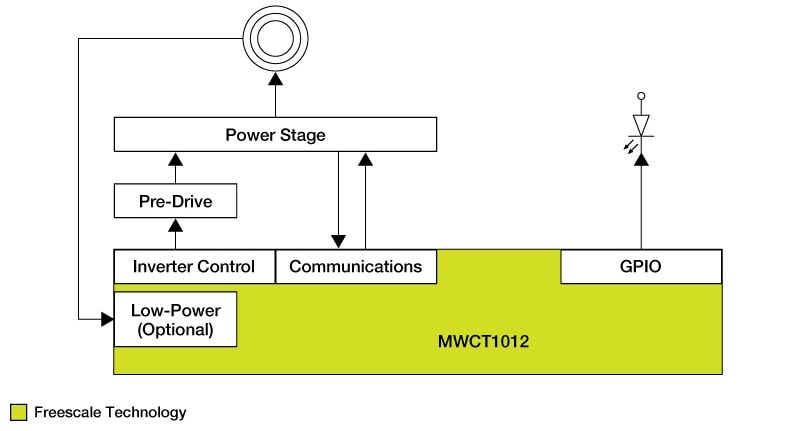

Blockdiagram

Documentation

WCT1012 15W Single Coil TX V3.0 Runtime Debugging User's Guide - User's Guide [English]
