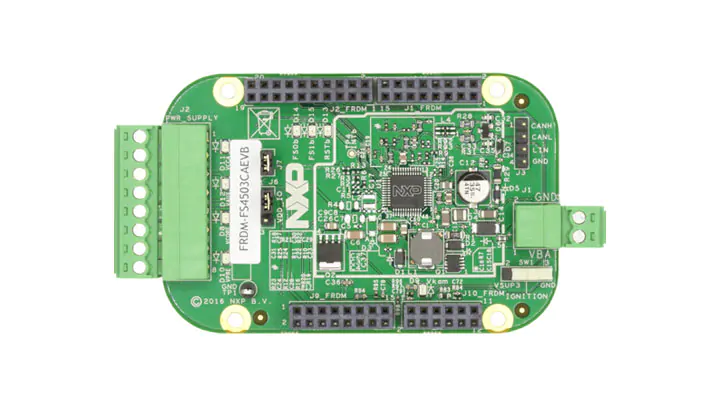

FRDMFS4503CAEVM: Freedom Board FS4503, System Basis Chip, LDO 500 mA Vcore FS1B LDT CAN

Overview

The FRDMFS4503CAEVM evaluation module demonstrates MC33FS4503 functionality, supporting CAN FD & FS1B, Vcore LDO regulator up to 500 mA. These safety SBCs target the ISO 26262 automotive functional safety standard.

NXP's Analog Product Development Boards provide an easy-to-use platform for evaluating NXP products. The board supports a variety of analog, mixed-signal and power solutions. They integrate monolithic IC system-in-package devices using proven high-capacity SMARTMOS® technology. NXP products help you build advanced systems by extending battery life, shrinking device size, reducing component count, lowering costs and improving performance.

This tool can be used independently. It can be controlled via the KL25Z Freedom circuit board plugged into it and accessed via USB. SPI commands can be easily
controlled through the FlexGUI available for download here

Hybrid Electric Vehicle (HEV) Applications

Design Files

Documentation
