45 W USB PD 3.0 Power Supply with 3.3 V – 11 V / 5 A (45 W Power-limited) PPS Output Using InnoSwitch3-PD PowiGaN (INN3879C-H803)
Uses InnoSwitch3-PD – off-line QR Flyback Switcher IC with Integrated USB Type-C and USB PD Controller, Integrated High-Voltage Switch, Synchronous Rectification and FluxLink feedback
Integrated USB Type-C and USB PD Controller reduces footprint, no external microcontroller required
Input - 90 VAC – 265 VAC
Variable output - 5 V / 5 A, 9 V / 5 A, 15 V / 3 A, 20 V / 2.25 A, 3.3 V – 11 V / 5 A PPS (45 W Power-limited), 3.3 V – 16 V / 3 A PPS, or 3.3 V – 21 V / 2.25 A PPS Outputs

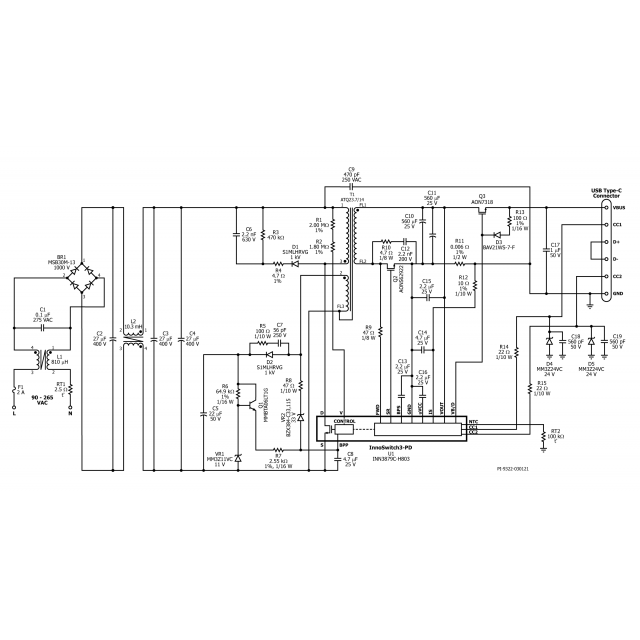

Blockdiagram
