Summary and Features
-Single-stage power factor corrected ( >0.5 at 230 V) and accurate constant current (CC) output
-Low cost, low component count and small PCB footprint solution
- Highly energy efficient, 91% across VAC input range
-Fast start-up time (<100 ms) – no perceptible delay
- Integrated protection and reliability features
-Single-shot no-load protection
-Output short-circuit protected with auto-recovery
-Auto-recovering thermal shutdown with large hysteresis protects both components and PCB
- No damage during brown-out conditions
-Meets IEC ring wave, differential line surge and EN55015 conducted EMI

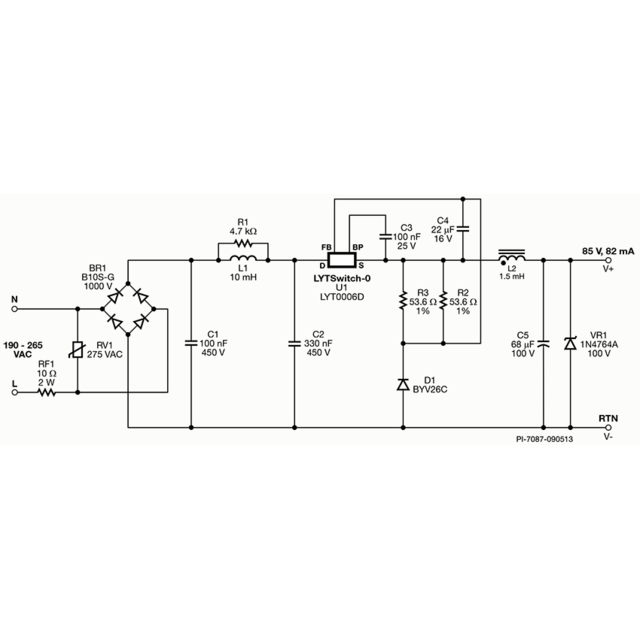

Blockdiagram
