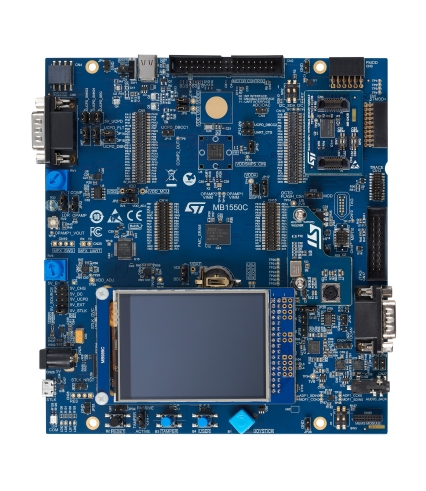

Evaluation board with STM32U575AI MCU

Overview

All features

STM32U575AII6Q Arm^® Cortex^®-M33 core-based microcontroller including Arm^® TrustZone^® with 2 Mbytes of Flash memory, 786 Kbytes of SRAM, and an embedded SMPS in a UFBGA169 package
2.8” 240x320 pixel-262K color parallel port TFT LCD touch panel module
CMOS camera QSXGA 5 megapixels
USB Type-C^® FS, Sink and Source power capability 5 V / 500 mA
SAI audio codec
ST-MEMS digital microphone
ST-MEMS 3D accelerometer and 3D gyroscope sensor
Light-dependent resistor (LDR) and potentiometer for ADC
512-Mbit Octo-SPI Flash, 16-Mbit SRAM, 128-Kbit I2C EEPROM
Power-metering demonstration with dual‑channel sigma‑delta modulator

4 user LEDs
Reset, Tamper, and User buttons
4-direction joystick with selection button
Touchkey button
Board connectors
- 5V power jack
- USB Type-C^®
- RS-232 communication and I2C compatible serial interface
- CAN FD
- Stereo audio jack including analog microphone input
- Connector for ADC input and DAC output
- Smartcard socket
- microSD™ card holder
- Coin-battery cell holder for power backup
- JTAG and ETM trace debugger connector
- 8‑bit camera expansion connector
- Octo-SPI expansion connectors
- Pmod™ and STMod+ expansion connectors
- Audio MEMS expansion connector
- Motor-control interface expansion connector
- Expansion connectors for daughterboard or wire-wrap board
Flexible power-supply options: ST-LINK, USB V_BUS, or external sources
On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
Comprehensive free software libraries and examples available with the STM32CubeU5 MCU Package
Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench^®, MDK-ARM, and STM32CubeIDE
