GNSS expansion board based on Teseo-LIV3F module for STM32 Nucleo

X-NUCLEO-GNSS1A1

Overview

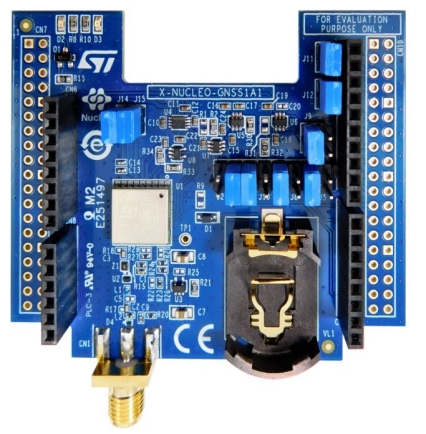

The X-NUCLEO-GNSS1A1 expansion board is based on the Teseo-LIV3F tiny GNSS module.

It represents an affordable, easy-to-use, global navigation satellite system (GNSS) module, embedding a TeseoIII single die standalone positioning receiver IC, usable in different configurations in your STM32 Nucleo project.
The Teseo-LIV3F is a compact (9.7x10.1 mm) module that provides superior accuracy thanks to the on-board 26 MHz temperature compensated crystal oscillator (TCXO) and a reduced time-to-first fix (TTFF) with its dedicated 32 KHz real-time clock (RTC) oscillator.
The Teseo-LIV3F module runs the GNSS firmware (X-CUBE-GNSS1) to perform all GNSS operations including acquisition, tracking, navigation and data output without external memory support.
The X-NUCLEO-GNSS1A1 expansion board is compatible with the Arduino™ UNO R3 connector and the ST morpho connector, so it can be plugged to the STM32 Nucleo development board and stacked with additional STM32 Nucleo expansion boards.

Main features

Operating supply voltage: 3.3 - 5 V
Ambient temperature: -40/+85 °C
Sensitivity: -162 dBm indoor (tracking mode)
Interfaces:
- a UART port
- an I²C port
- Configurable digital I/O timepulse
- EXTINT input for wakeup
NMEA protocol
Assisted GNSS:
- Predictive autonomous
- Predictive server-based
- Real-time server-based

Compatible with STM32 Nucleo boards
Compatible with the Arduino™ UNO R3 connector
LNA and SAW filter on the RF path
SMA female antenna connector
Battery holder
RoHS and WEEE compliant
