This project is suitable for beginners to practice welding, and also suitable for use in welding competitions to examine the quality of players' welding of circuit boards, etc.

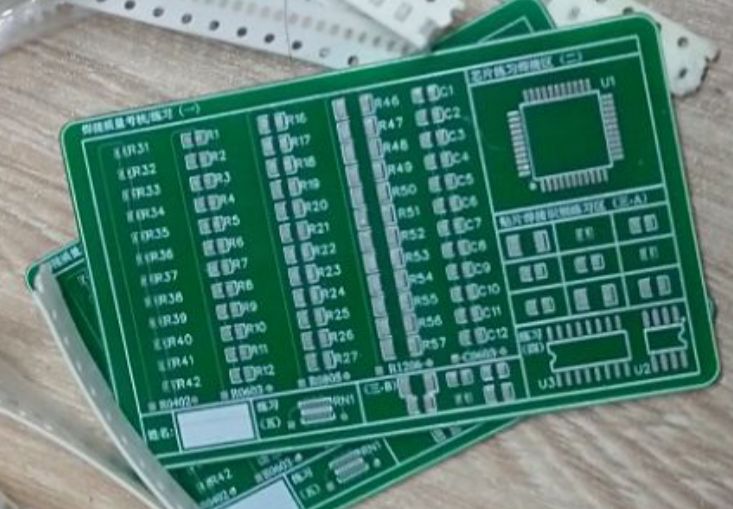

(1) This board contains:
QFP-44 package chip
1206, 0805, 0603, 0402 package resistors
0603 package capacitor
SOP-16, SOP8 chip
RNS exclusion
(2) This board has five assessment sections, and the assessment time is 45-60 minutes (novices)
(3) The engineering accessories are part of the assessment board (finished product welded by the person being assessed)
