2021-LED board

Overview

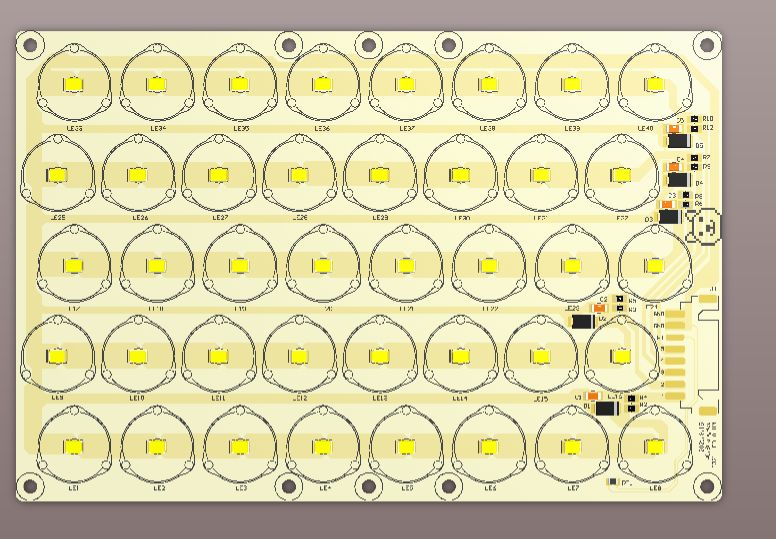

LED board single panel design, 8 strings and 5 channels.

2835LED with lens, 8 strings and 5 channels design, common ground. Can be turned into RGBW, or warm, white.

With NTC resistor. XH2.50-8P plug.
