Warning: The BOM is automatically generated and may not match the actual situation. Please do not use the BOM table to place orders directly. Everything is subject to the PCB package and schematic values.
All io leads, including unused ones of arduino
Experimental circuits of unknown significance have been removed.
Please check out: Iris Cube->Series Microcontroller Development/Verification/Core Board Introduction

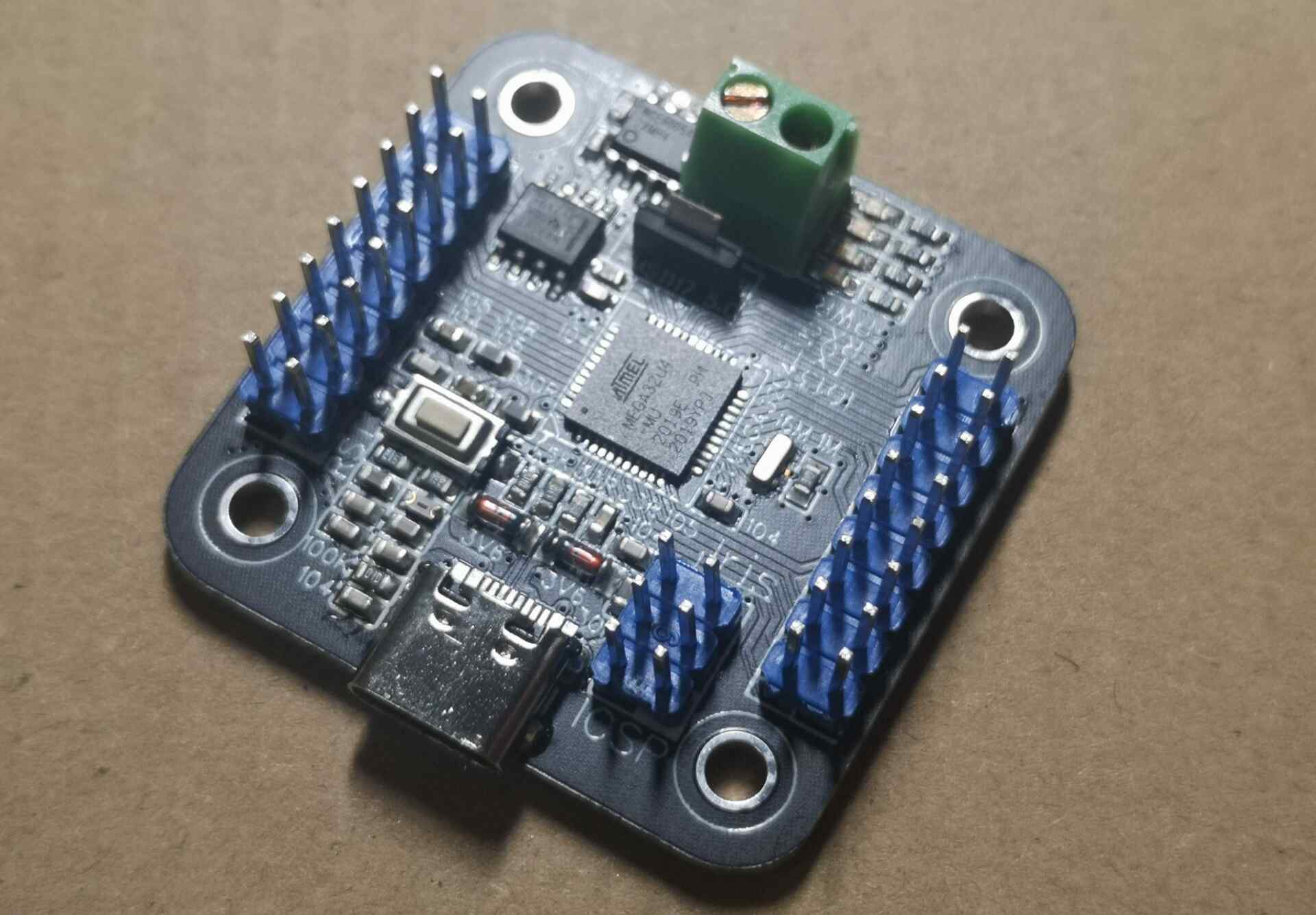

The low-power Microchip 8-bit AVR® RISC-based microcontroller featuring 32 KB self-programming flash program memory, 2.5 KB SRAM, 1 KB EEPROM, USB 2.0 full-speed/low-speed device, 12-channel 10-bit A/D-converter, and JTAG interface for on-chip-debug. The device achieves up to 16 MIPS throughput at 16 MHz. 2.7-5.5 volt operation.
// From: https://www.microchip.com/wwwproducts/en/atmega32u4
Form factor: Iris Cube Basic Hippasus ( https://oshwhub.com/Iris-Cube/ICBasic )
