Based on ESP8266TFT display

Use ESP12F to drive TFT screen display. There are two USB to serial port chips in the schematic diagram. It is recommended to choose CH340C. It can be downloaded automatically. If the smallest size is required, CH340E can be used. I put two displays, one is 1.8 inches, and the other is 2.4 inches, you can choose it yourself. The package modifies itself.

TFT_eSPI library user manual

1. TFT_eSPI configuration

1. Download the tft_espi library

https://github.com/Bodmer/TFT_eSPI

It is strongly recommended to use the older version, around 2.0. The new version will have problems such as display inversion.

2. Unzip and import it into the libraries in the root directory of arduino.

(You can also install it directly using the arduino compiler. The path is in the computer's Quick Access->Documentation->Arduino->libraries)

3. Open the file User_Setup.h (it is recommended to open it with notepad++, it is more powerful and can open many types of files). It can be seen from the file name that this file needs to be modified by the user himself.

1. Open the file User_Setup.h and modify the parameters according to your own screen information.

2. Select the driver chip of the screen. Here is ST7735 as an example. Just remove the "//" in front of it.

3. Select the screen pixel (I use a 128*160 screen, just remove "//")

4. Select pins according to your own schematic diagram

If the screen reset RST is introduced and connected to the ESP8266,

Just remove the "//" before //#define TFT_RST -1, and block the previous statement at the same time.

The picture below is the pin correspondence diagram of ESP8266

5. Adjust SPI speed

The default is 270000000, here I set it to 40000000.

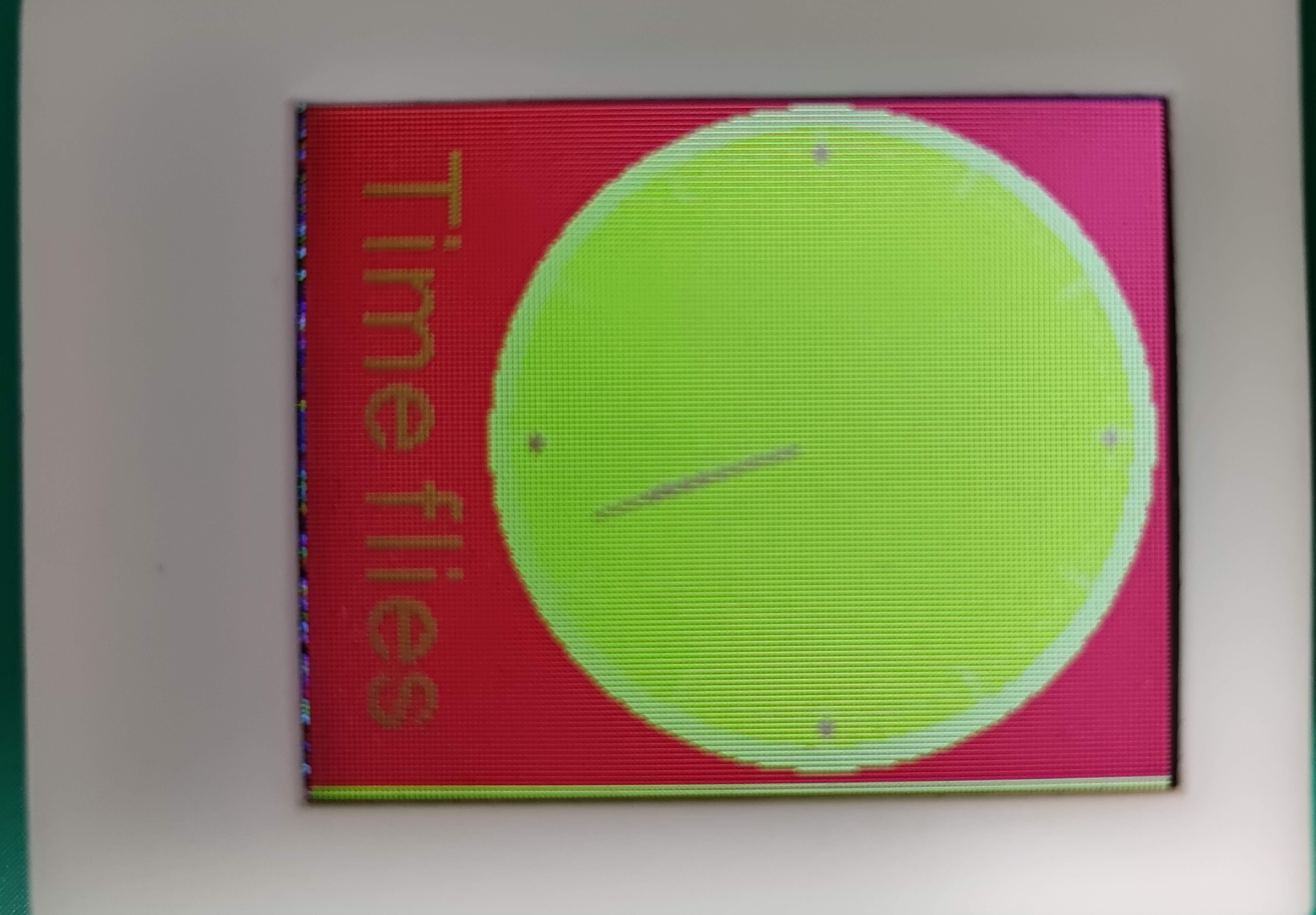

At this point you can use the routine test screen that comes with TFT_eSPI

The routine is here

At this point, the TFT_eSPI library is configured.

2. TFT_eSPI library tutorial

1. Color adjustment

1. Common colors have been defined in the library and can be called directly when needed.
2. To customize the color, use the statement tft.color565(); (the parameter is the RGB value corresponding to the color)

1. Set translucency and fill in the tft.alphaBlend() where the color is used;

For example: tft.alphaBlend(20, TFT_RED, TFT_WHILE);

2. Set font

The number range is 1, 2, 4, 6, 7, 8. Different numbers represent different fonts. Different fonts have different basic sizes due to different resolutions.

If you want to learn the custom font library, please refer to ArduinolibrariesTFT_eSPIexamples320 x 240TFT_Custom_Fonts

3. Related APIs

1. tft.init(); //Initialize the initialization screen. If it is ST7735, you can pass a parameter into it. You will see when it is used.

2. tft.fillScreen(TFT_BLACK); //Fill the full screen

3. Screen rotation

//Set the rotation angle of the screen display. The parameters are: 0, 1, 2, and 3 respectively represent 0°, 90°, 180°, and 270°.

void setRotation(uint8_t r);

4. Screen color inversion

//Invert the display color i = 1 is inverted, i = 0 is normal

tft.invertDisplay(bool i);

4. Display text

1. tft.setCursor(20, 10, 4); //Set the typing starting coordinate position and font size

2. tft.setTextColor(TFT_BLACK); //Set font color

3. tft.setTextSize(2); //Set the font size (range 1~7)

4. tft.print("Hello World!"); // Display font

5. Draw characters

1. Draw a string (left)

2. Draw string (centered)

3. Draw a string (right)

4. Draw characters

5. Draw floating point numbers

6. Draw numbers

6. Draw geometric figures

1. Draw dots

2. Draw lines

3. Draw horizontal lines (quick)

4. Draw vertical lines (quick)

5. Draw a hollow circle

6. Draw a solid circle

7. Draw a hollow ellipse

8. Draw a solid ellipse

9. Draw a hollow rectangle

10. Draw a solid rectangle

11. Draw a hollow rounded rectangle

12. Draw a solid rounded rectangle

13. Draw a hollow triangle

14. Draw a solid triangle

7. Display pictures

Displaying images requires the mold taking software lcd-image-converter

Adjust the pixel size of the image to not exceed the screen size -> Click File->Open->Select the image->Options->Conversion...->Set as shown in the interface->Shoe Preview->Copy the array

The mold taking is now complete.

Create a new jpg.h file, and save the array just copied moduloly within the braces of the const unsigned short bmp[] PROGMEM={}; statement.

Routine:

#include<jpg.h>

#include<TFT_eSPI.h>

TFT_eSPI tft = TFT_eSPI();

void setup() {

tft.init();

tft.pushImage(0,0,128,160,bmp);

}

void loop() {

}

This will display the picture.
