atmega328p-t12 soldering station

Overview

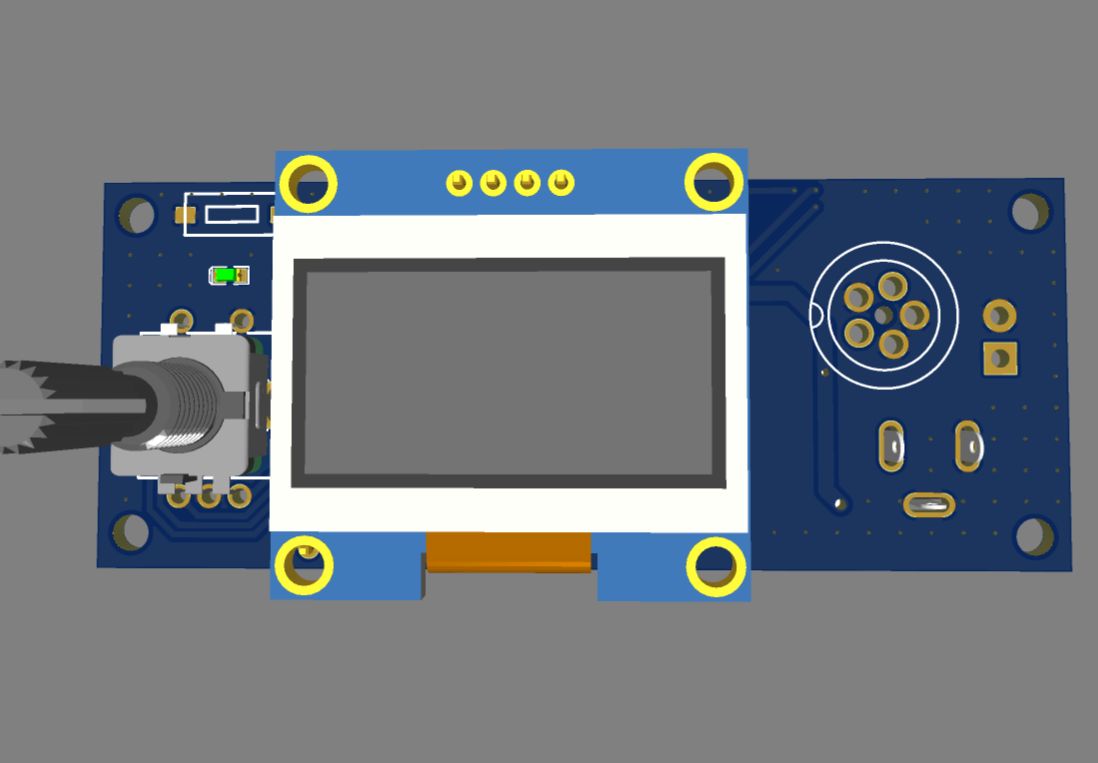

atmega328p-t12 soldering station

Modified based on the open source project ATmega-Soldering-Station

The PCB was rearranged, a DC socket and a 5-pin aviation plug were added, and the packaging of some components was modified.

Except for the 3D shell, everything else is compatible with the original project

The wiring sequence of the aviation plug is only compatible with the T12 handle that is finished for 20 yuan by Aubao.
