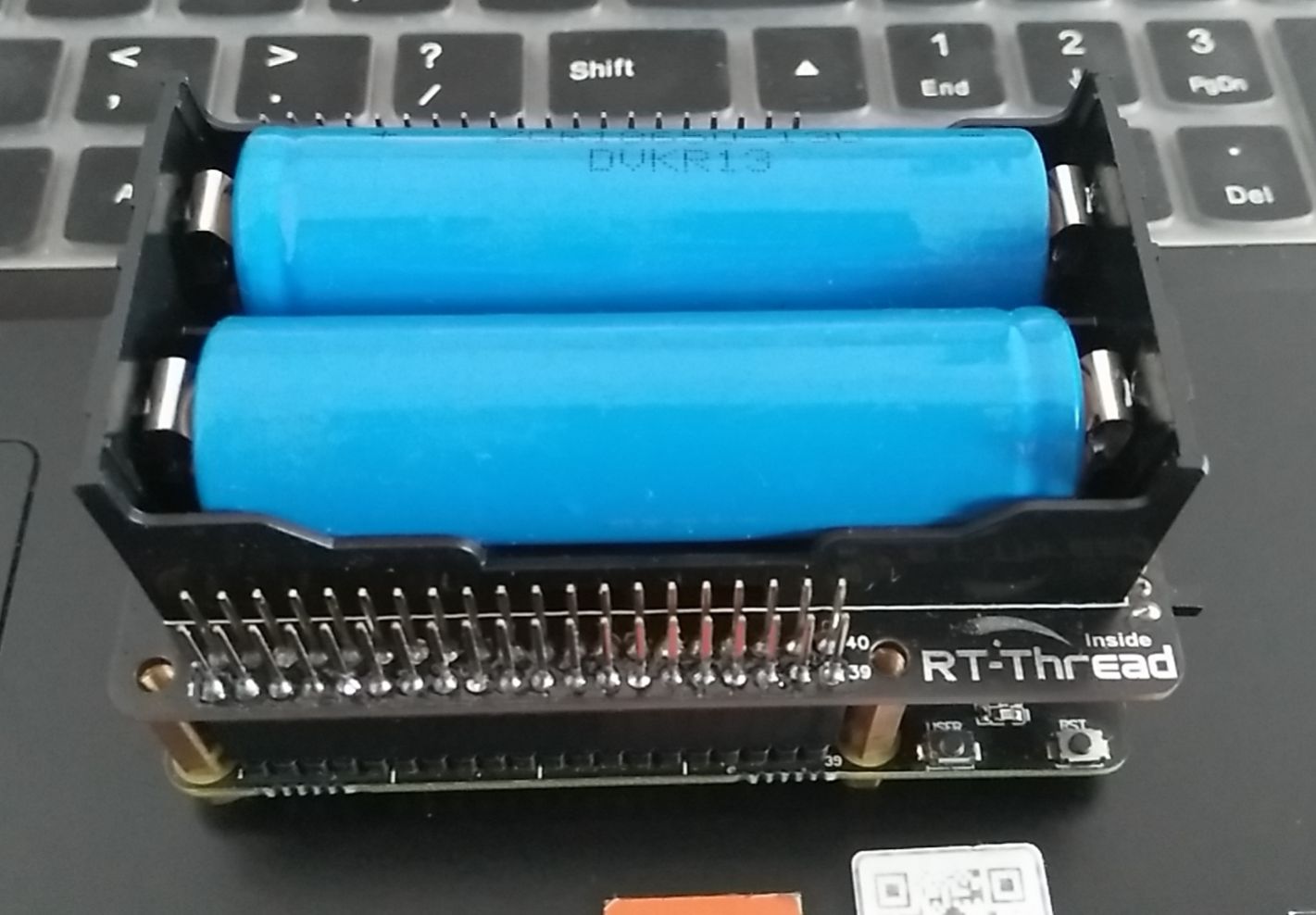

UPS HAT supports charging and discharging at the same time. It can power the ART-Pi through the ART-Pi 80 pin GPIO port , and can also power the ART-Pi or other devices through the onboard USB.
The onboard current monitoring chip communicates through the I2C interface, which can measure parameters such as battery voltage, current, power and remaining power, and detect the working status of the module in real time.
Onboard battery protection circuit, prevents overcharge, over-discharge, over-current, short circuit and reverse connection, balanced charging
Onboard 5V voltage regulator chip, maximum 2.5A continuous output current
Onboard USB interface can output 5V power supply to facilitate power supply to other main control boards
