EPM7128STC100 Test

Overview

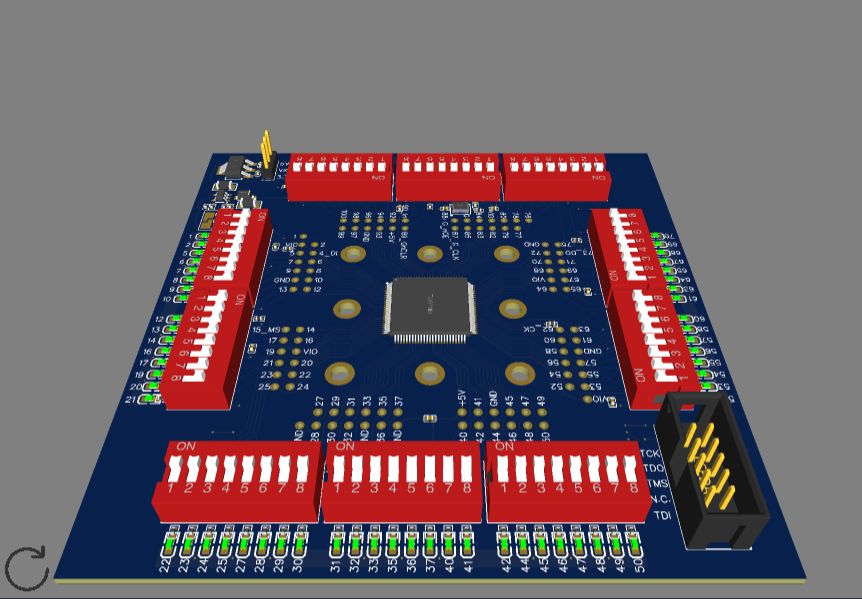

Test EPM7128/ ATF1508 CPLDs.

Features:

All IOs are fanned out.
BitBlaster/ ByteBlaster/ USB Blaster are supported.
Includes a high voltage (+12V) generator, for force unlocking JTAG pins.
