Triangular ruler 00

Jialichuang PCB5 yuan 5 pieces free shippingbecome free ,

The limited area of ​​10*10cm is actually enough for conventional DIY. But it is not enough for everyone to make a cool and stylish PCB long ruler. It's better to make a triangle ruler . That's enough.

I made this for my sister . She helped choose the pictures above, and everyone can modify them on their own.

You can set this when placing an order in Jiali

1. The plate thickness is 0.8mm (recommended), or 1.0mm
2. Color can be chosen as white

The attachment is an exported layout file without any modifications. If you don’t want to modify or export it yourself, you can directly use it to Jiali to place orders.

I found that the reason why I didn’t make the right-angled side 10cm was not that it was too big, but that the scale was too difficult to arrange. It doesn't seem possible to do this with an array tilted 45° .

If you don't change the direction, but make the right-angled side 10cm, Gerber will finally display 14cm*7cm, which is exceeded.

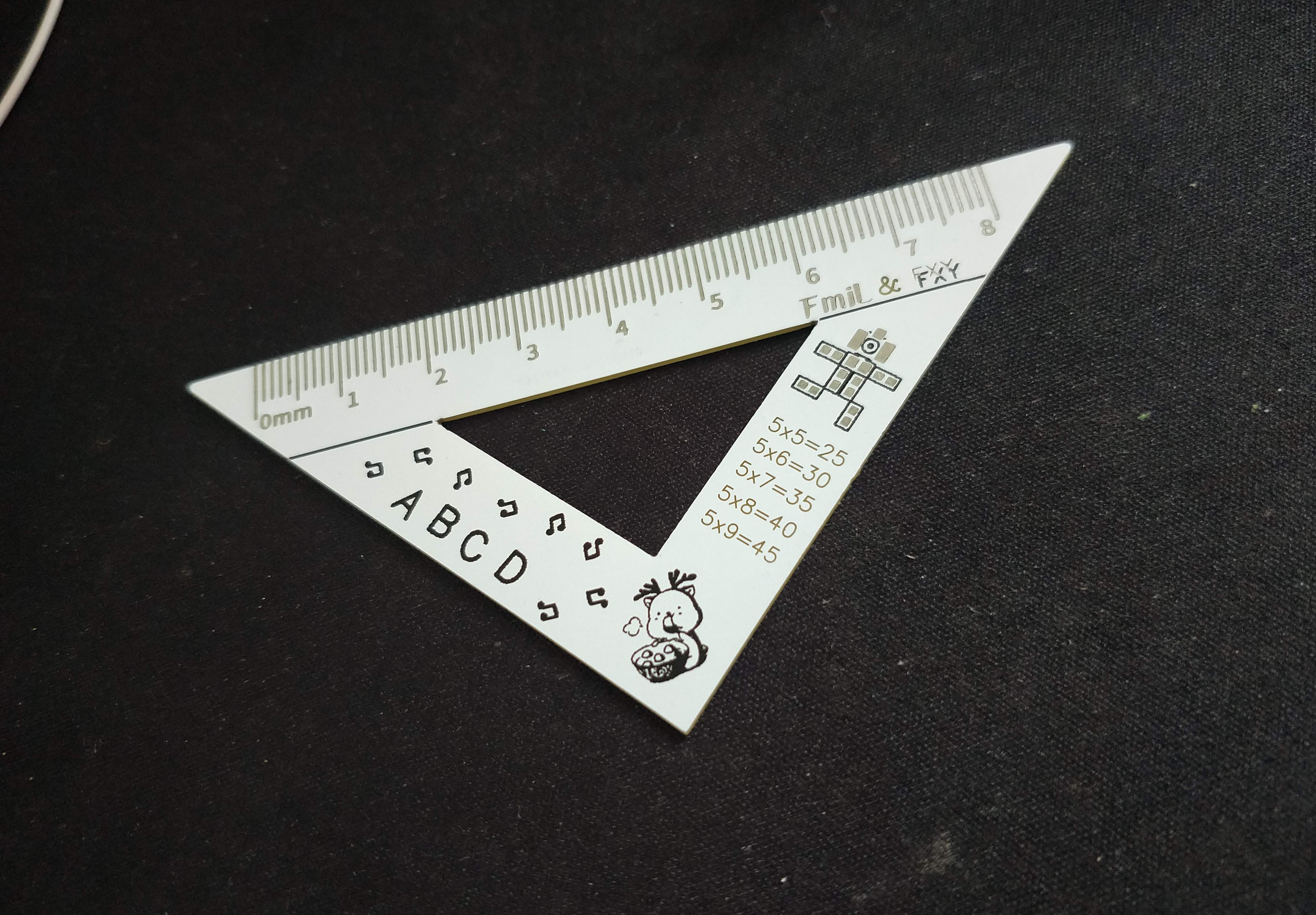

Attached is a little finished effect
