Robogame2021 Public Power Strip

Overview

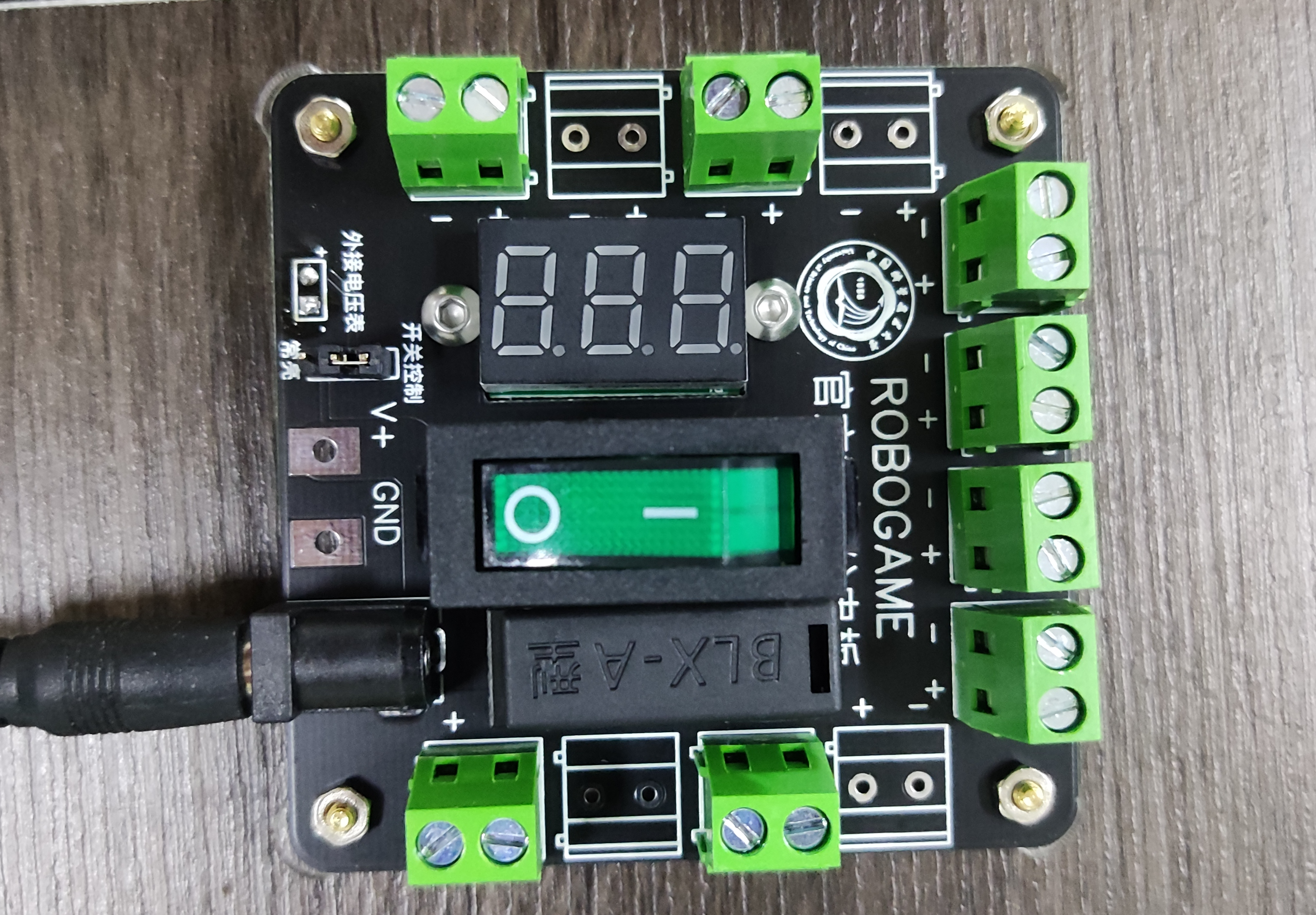

Special distribution board for the Robogame robot competition of the University of Science and Technology of China

Input interface: DC5.5-2.1 or pad link

Input voltage: 12V/24V, it is recommended to use corresponding switches for different voltages

Output interface: KF128 terminal block

Output voltage: 12V/24V * up to 12 ports

Maximum current: depends on the fuse, generally 10A/15A

Mechanical dimensions: outer frame 70mm*70mm, four corner openings M3, hole center 60mm*60mm
