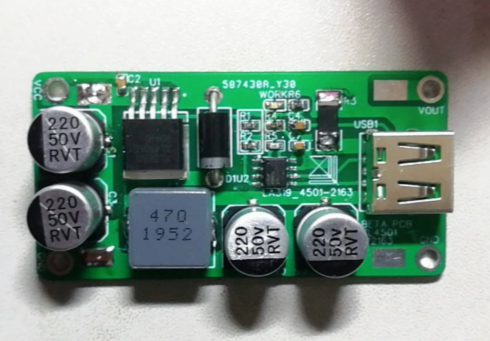

Input voltage 8-36V, output voltage defaults to 5V, maximum current 5A output can support QC2.0/3.0B to 20V voltage output (it is recommended that the input voltage is greater than or equal to 24V at this time), non-USB pads and USB sockets are reserved, and one is added by the way. LED light, you can know whether it triggers transformer fast charging through changes in brightness. Please see the comments for details.
