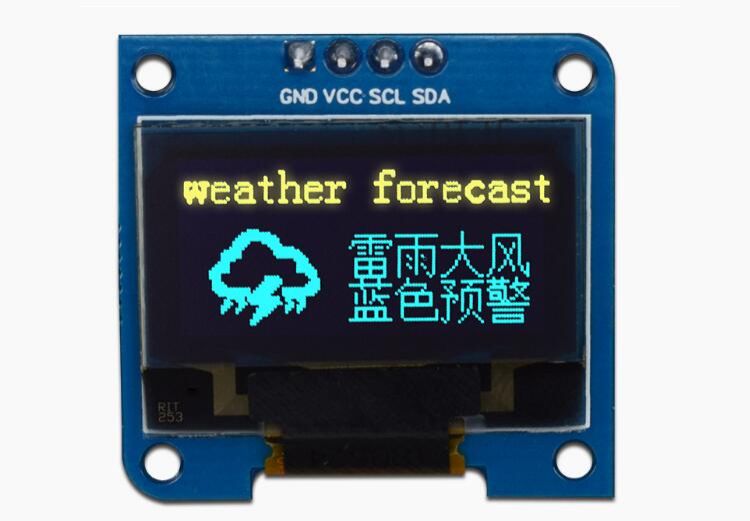

The 0.96' OLED (4Pin) module uses SSD1306 as the main chip, with a pixel size of 128*64. The communication method can be SPI or IIC (default address is 0x78). The pins are fully compatible with IIC (that is, when set to IIC mode, you can only connect 4 Root wire), the default is 4-Wire SPI communication mode, self-illuminating, free viewing angle, low power consumption.
| symbol | GND | VCC | SCL | SDA |
| describe | Ground pin | Power input pin | clock input | Data input/response output |
