USB-TLL serial communication module-CH340C

Overview

product description

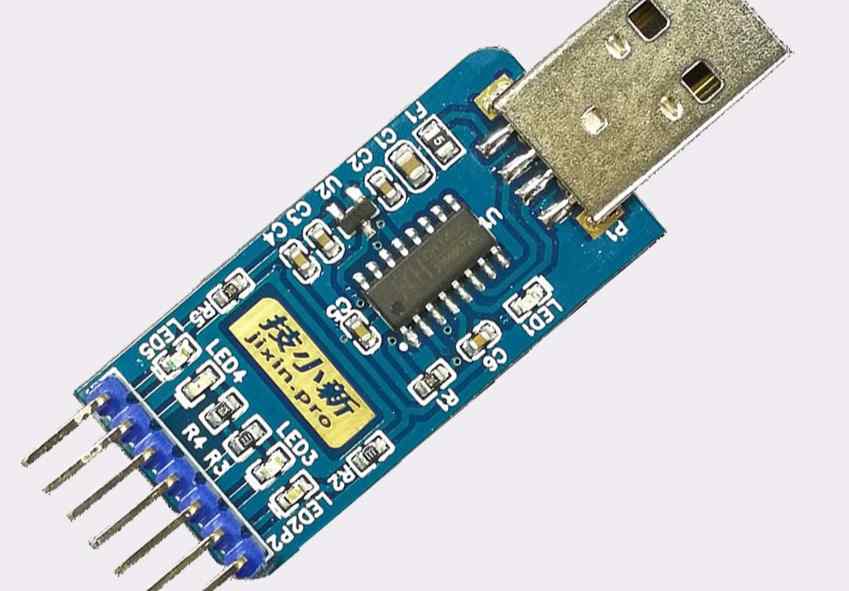

The CH340C USB to TTL module is based on the CH340C chip. It has a built-in crystal oscillator with a maximum baud rate of up to 2Mbps. The software is compatible with the CH341 driver and has over-current protection. It leads to the corresponding communication interface and power interface. The communication interface has an indicator light to indicate the work. status, stable communication and small size.

Features

Full speed USB driver, compatible with USB2.0
Hardware full-duplex serial port, built-in transceiver buffer
Support baud rate 50bps~2Mbps
Output TTL level 3.3V, compatible with 5V IO level

Pin function table

symbol	describe
TxD	Serial data output port
RXD	Serial data input port
GND	Ground pin
3V3	3.3V power output pin (up to 250mA)
5V	5V power output pin (up to 500mA)
RTS	MODEM contact output signal, request to send
DTR	MODEM contact output signal, data terminal is ready
