3.7V lithium battery charging module-TP4056

Overview

Features

Up to 1A charging current
4.2V preset charging voltage with accuracy up to ±1%
Charging status, no battery status indication
Under voltage lockout, automatic recharging

product description

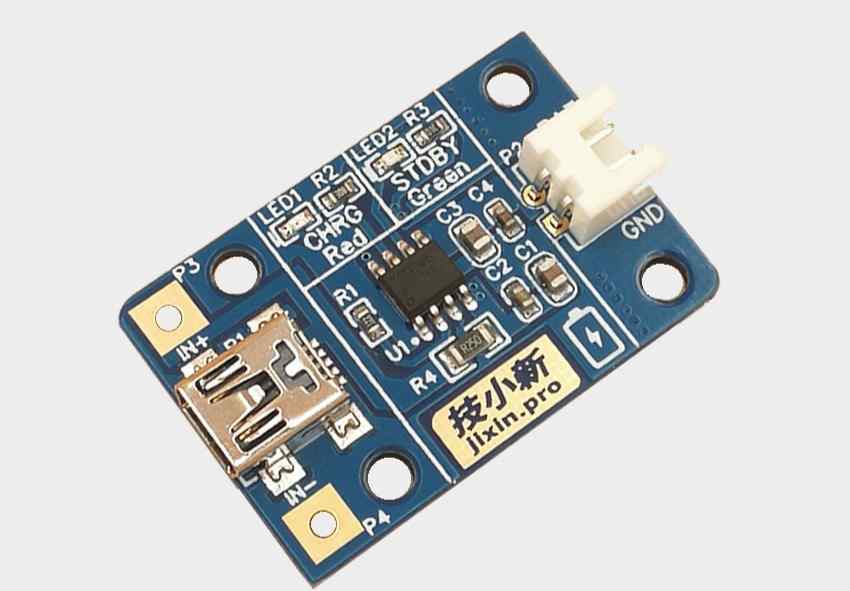

The module uses the TP4056 chip as the core, which can realize constant current/constant voltage charging of a complete single- cell lithium-ion battery. The charging current I = 1200/R1 = 1A (when the input power is sufficient). The module is equipped with a charging indicator light and a standby indicator light. When charging, the charging indicator LED1 (red) is on; when fully charged, LED1 goes off and the standby indicator LED2 (green) is on; when there is no battery connected, LED2 is on and LED1 starts with 1 Flashes at a frequency of ~4S. The module has an undervoltage lockout function and an automatic recharge function. When the input power supply VCC<3.7V, the TP4056 is in shutdown mode; after charging is completed, when the battery voltage drops to 4.05V (roughly corresponding to 80% of the battery capacity below 90%), the charging cycle begins again .

Pin function table

symbol	P1	P2	P3	P4
describe	Mini-USB power input port	XH2.54 charging port	Power supply positive input interface	Negative power input interface

Design Files
