fish001

AD7606BSTZ-RL

Overview

This project is used to verify the solution verification board design of the AD7606BSTZ-RL analog -to-digital conversion chip of Lichuang Mall
This project is a sample project for the Solicitation Order for Lichuang EDA Open Source Hardware Platform Solution Verification Module

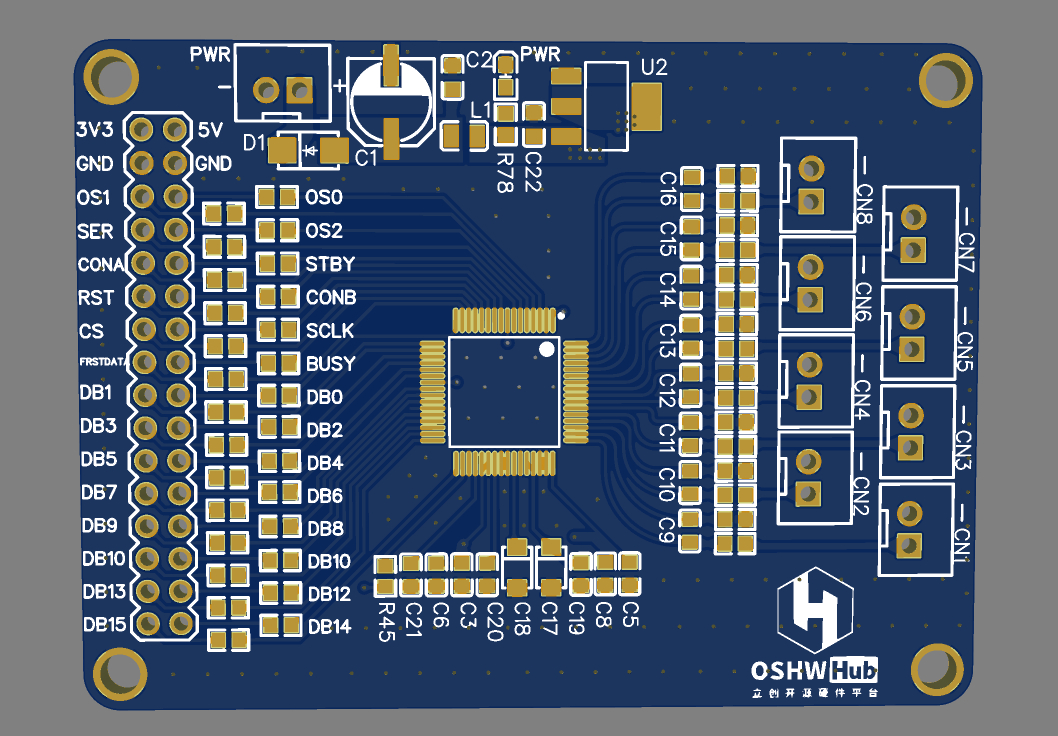

This design is an analog-to-digital conversion module based on AD7606. AD7606 is an 8-channel 16-bit serial and parallel output analog-to-digital conversion chip.
This design builds the peripheral circuits of the chip, including power circuits, pull-up and pull-down circuits, etc., and leads out all control pins and data pins to facilitate connection with the microcontroller.
The next step will be to conduct PCB proofing, and then update PCB photos, soldering finished product photos, etc.
During DRC inspection, be sure to change the hole to an inner diameter of 0.3mm and an outer diameter of 0.6mm.
