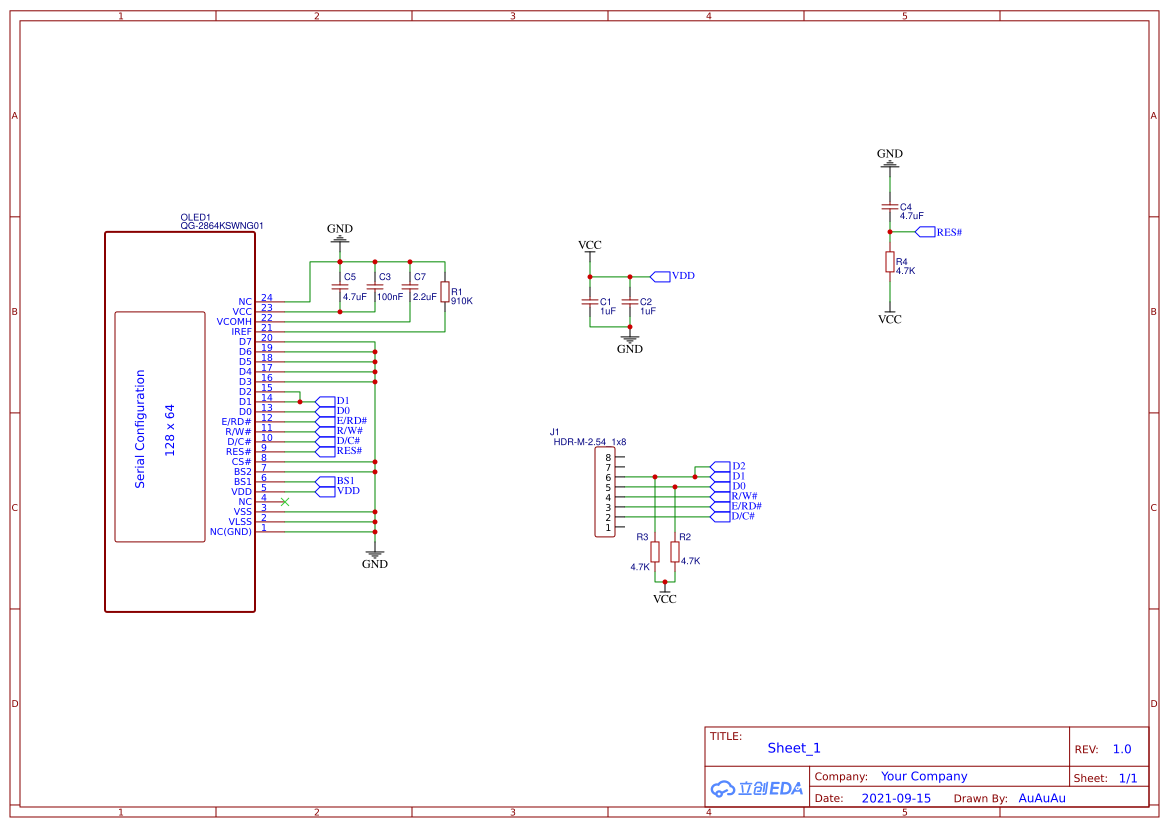

This solution verification board is used to verify the functionality of the 15-inch 24PIN OLED display. In this solution, the high and low levels of the BS1 pin can be controlled by welding R5 and R6, thereby controlling the communication method of the solution verification board.
