C782307_LAN8720A chip solution verification board

Overview

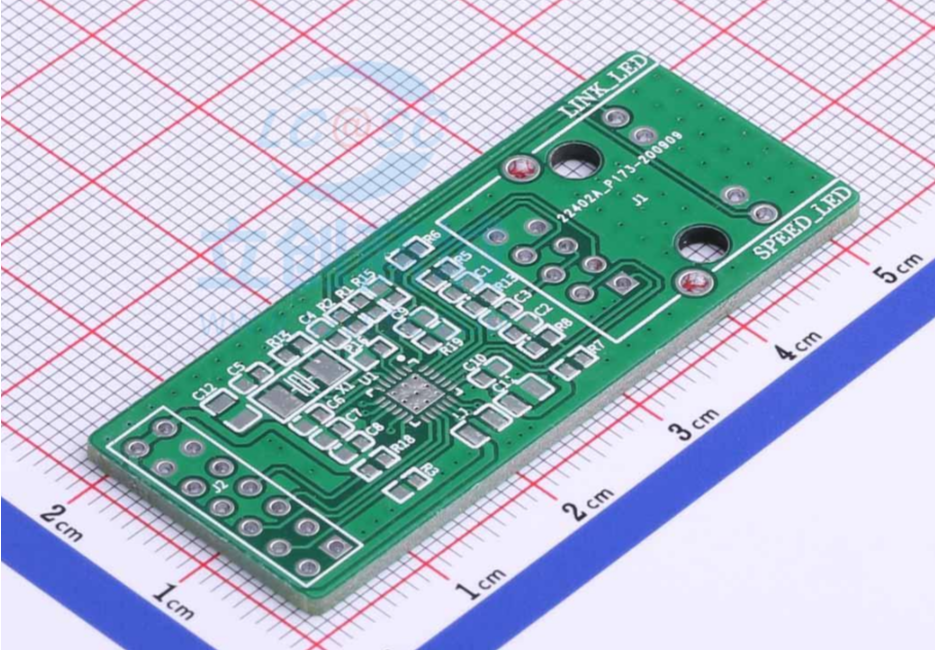

LAN8720A is an Ethernet PHY chip that supports 10M/100M transmission and uses RMII to communicate with the upper-layer MAC. This solution verification board mainly draws its basic network port circuit and leads out all RMII pins.
