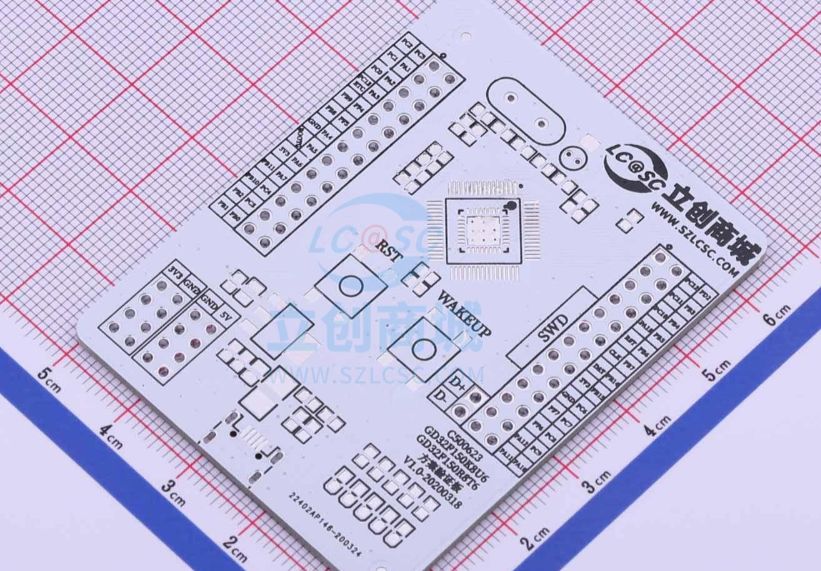

This solution verification board is designed for GD32F150K8U6 and GD32F150R8T6 microcontroller chips. The packages are VQFN-32 and LQFP-64 respectively. The whole board is powered by micro USB and outputs 3.3V through a 1117 voltage regulator tube. Power supply, equipped with wake-up button and reset button in the middle, with IO ports leading from the chip pins on both sides for debugging, including 3.3V and 5V voltage selection, BOOT0 mode selection, SWD debugging interface, USB device selection, power indicator light and 4 LED lights for debugging. Note: This verification board is also compatible with some GD32 chip models packaged as QFN-32 and LQFP-64.
