Huanghuai University LiChuang Cup Electronic Design Competition-#991768A-#Li Qingbo

Overview

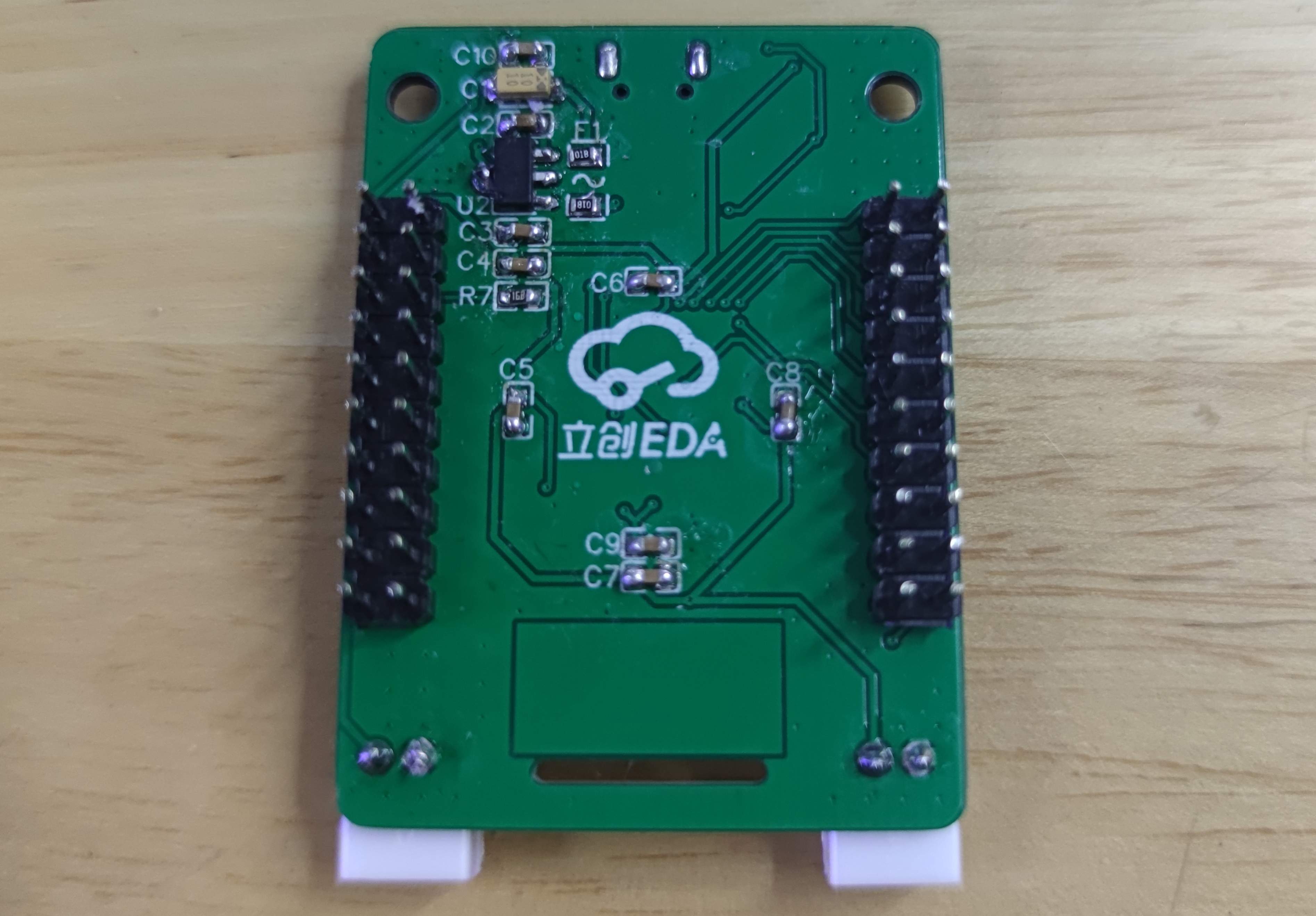

This project is a minimum system that lights up LED lights through USB power supply. After entering the corresponding program, the light can flash evenly. This is the first work I made by myself. Although the function is single, making such a project can bring a lot of basic knowledge to beginners and cultivate their interest in creative engineering. Therefore, this project is of great significance to me. I am very grateful to LiChuang for providing me with this opportunity. I believe that I will definitely use LiChuang's platform to create better works in the future.
