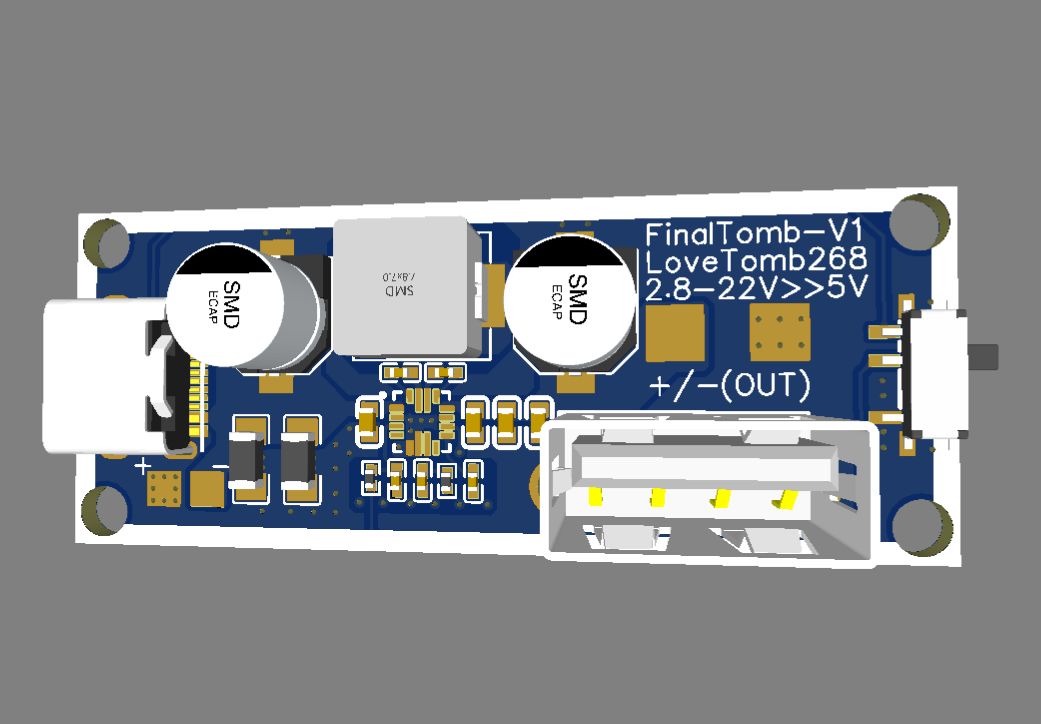

Love tomb style No. 268 - wide input regulated output 5V3A, based on MP28167

Overview

LoveTomb268-MP28167

5V voltage stabilizing module with MP28167 as the main control, the voltage range supports 2.8-22V

Input voltage 2.8-22V, maximum 4A input

The output voltage is stable at 5V, with a maximum output of 3A

With external EN function

Input equipped with C port and pad

Output equipped with A port and pad

Built-in power tube
