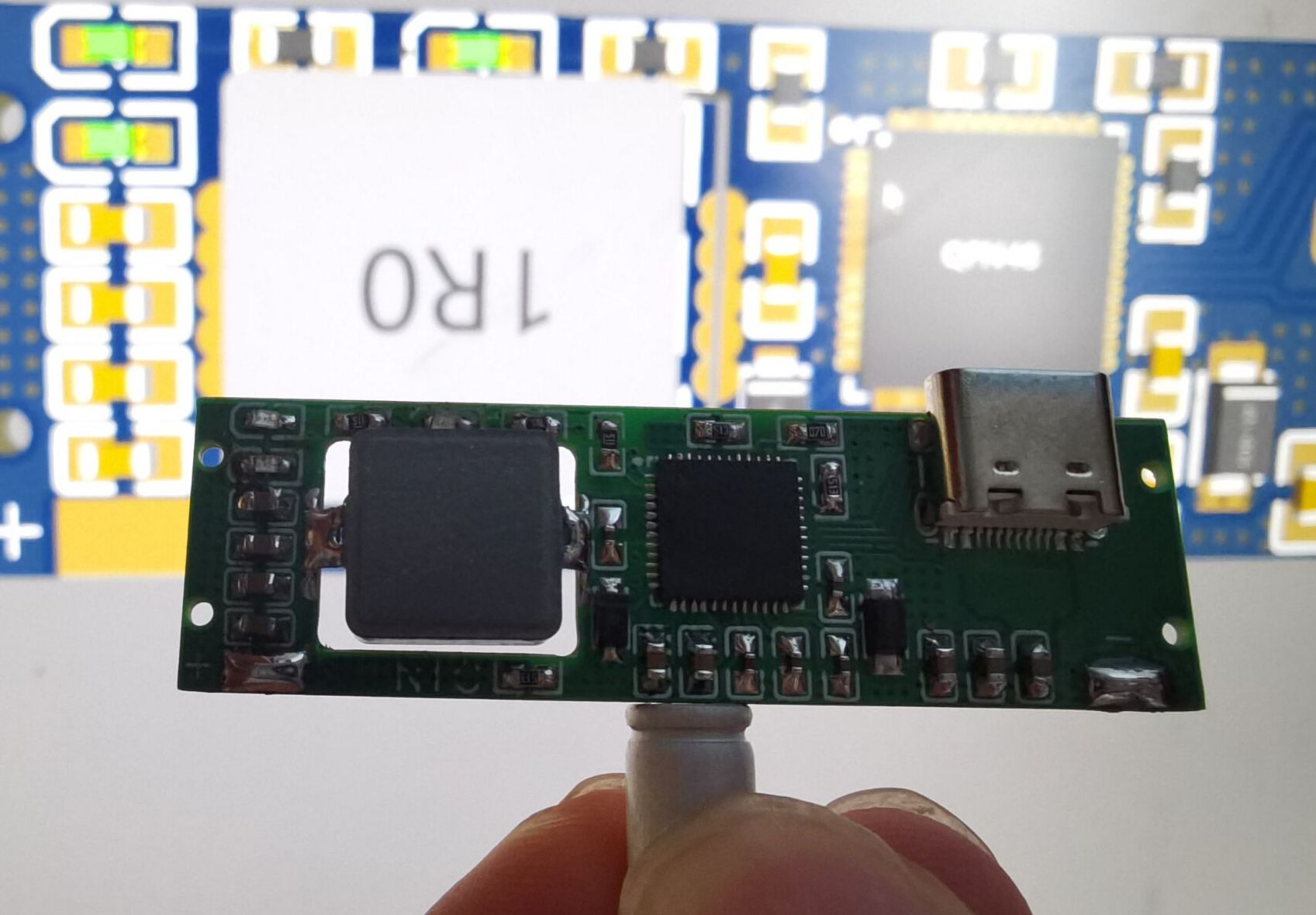

Love Tomb Style No. 322-IP5358 Mini Single C Version, 1.5X5CM

Overview

Input conditions: 4.2V-4.5V lithium battery type adjustable

Output range: 4.5-9V adaptive fast charging output

It has all fast charging protocols within 22.5W, including remote private devices such as VOOC DASH.

Two LED lights display power, self-learning fuel gauge

An LED light shows the fast charging status and lights up when fast charging is triggered.

PS: To reduce ripple, you can connect a solid-state 220UF to VSYS
