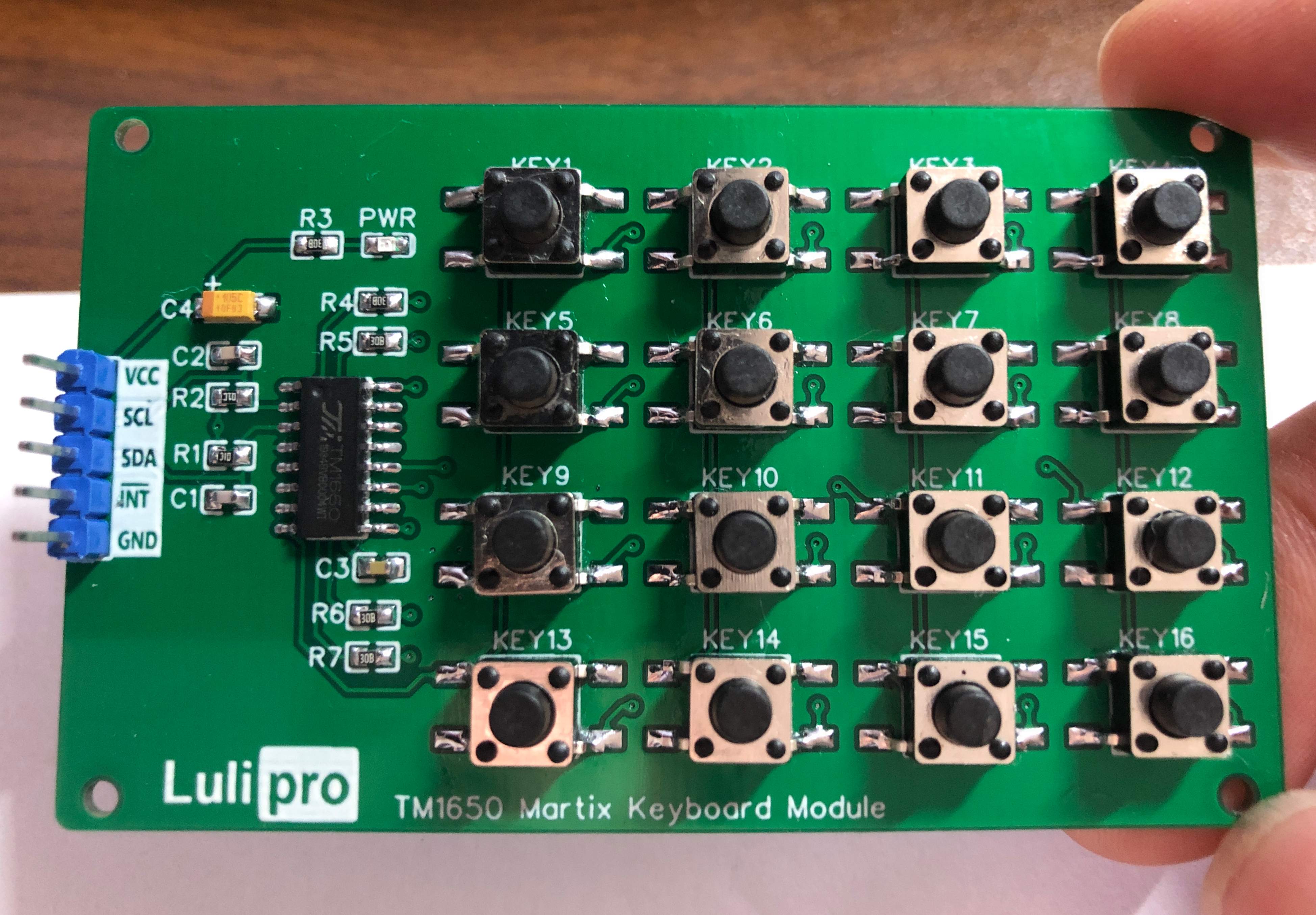

4x4 matrix key module based on TM1650. Use the I2C interface to communicate with the microcontroller. When a button is pressed, the microcontroller is notified through a falling edge interrupt. It eliminates the need for button scanning by the microcontroller, saving valuable CPU time of the microcontroller; communicating through the I2C interface saves the IO of the microcontroller.
