MH-Z19B carbon dioxide detection alarm-51 version

Overview

1. Hardware information

Main control: STC89C52RC

Sensor: MH-Z19B module (acquire concentration via UART)

Display: LCD1602

-------------------------------------------------- -

2. Function introduction

Real-time monitoring of indoor carbon dioxide ppm value, detection range: 0~5000ppm
With alarm function, alarm threshold can be set
Equipped with relay and buzzer alarm modes, both modes can be turned on independently through settings
It has a power-off save function and can store setting parameters.

(See code comments for details)

-------------------------------------------------- -

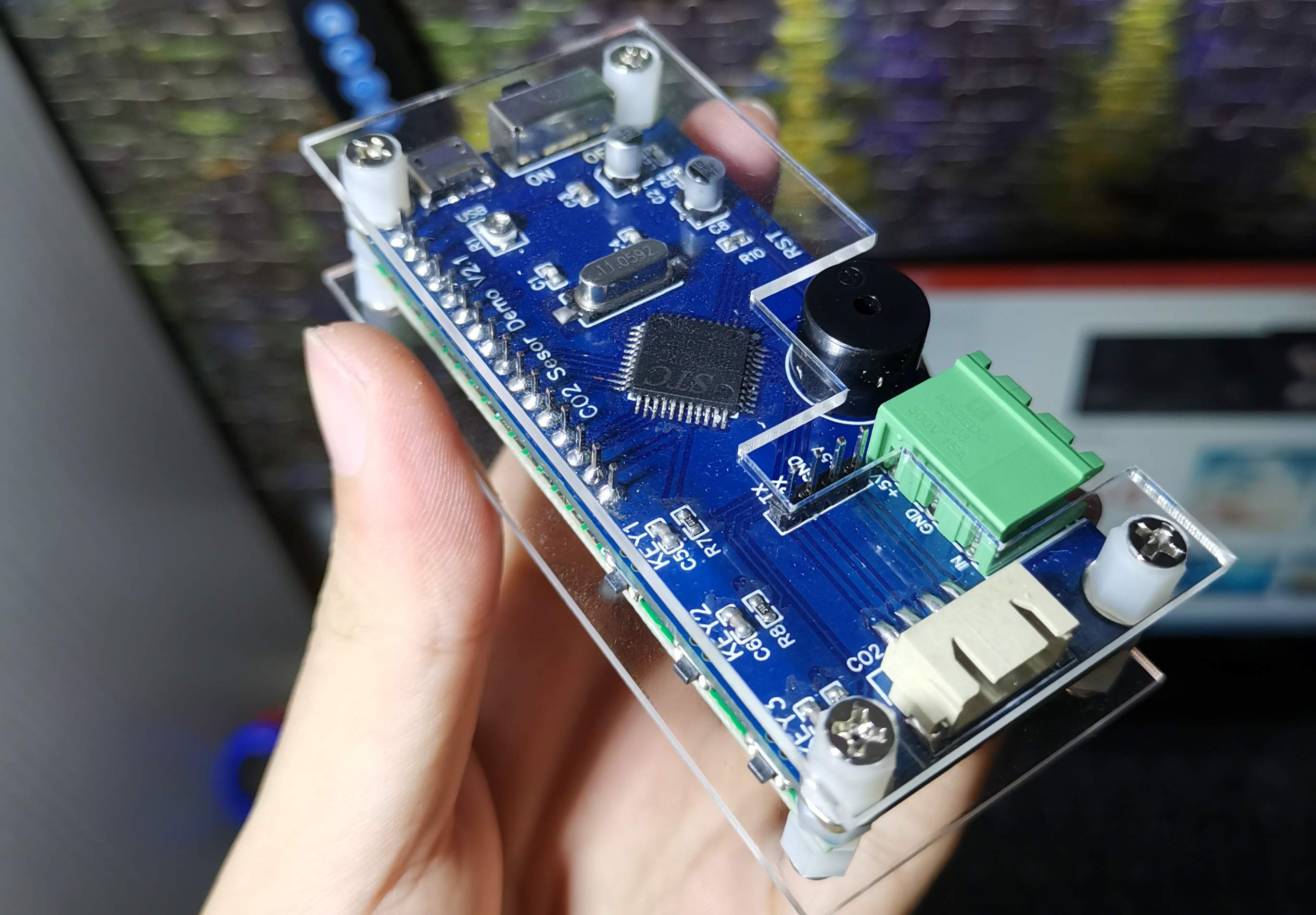

3. Display of physical objects and 3D pictures
