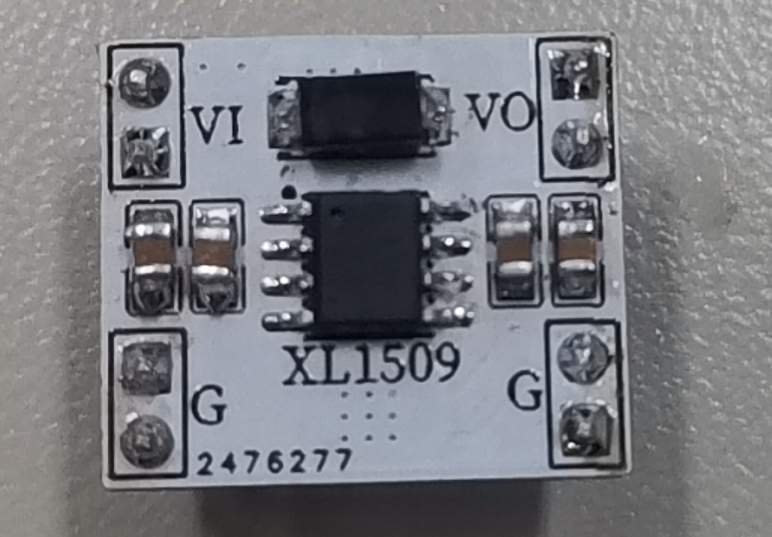

XL1509 step-down module, you can choose 5V or 12V step-down according to the chip. It needs to be equipped with an external base plate. An electrolytic capacitor must be provided at both input and output ends. You can choose the capacity and withstand voltage value by yourself.
