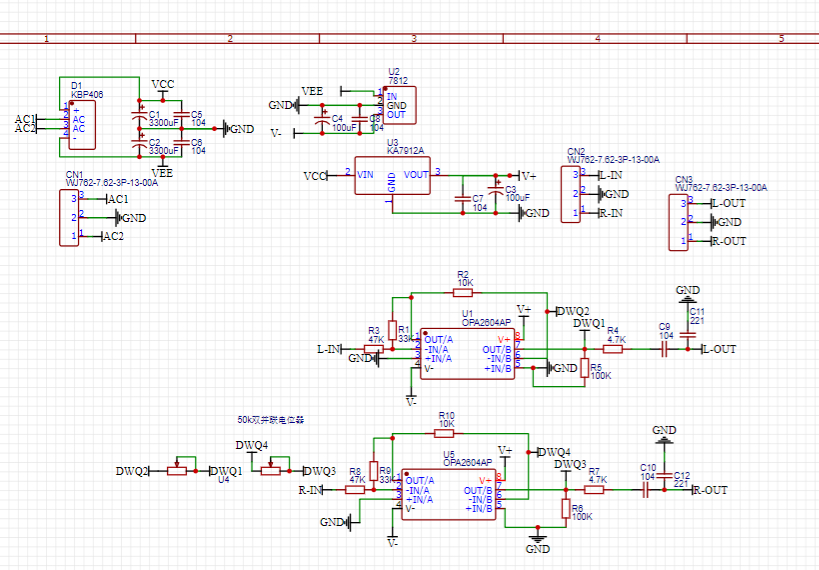

A1 preamp tone board (single potentiometer)

Overview

Either voltage is 12-18v, or a transformer with a power of 10w or above is sufficient; the sound is nice and nice. QQ picture 20200330153928.jpg QQ picture 20200330153936.jpg
