Introduction

Most of the 2.4-inch to 3.5-inch LCD-TFT displays (bare screen modules) on the market that use 40Pin FPC cables as physical interfaces use this same set of wire sequences:

Under normal circumstances, this set of line sequences can be configured as 4-Line SPI, 3-Line SPI, 8bit 8080 and 16bit 8080 interfaces by configuring the IM pin. This adapter board leads out the 4-Line SPI communication pins and IM configuration pins of this set of interfaces, making it convenient to test the LCD module or use it for development.

In addition to the transfer circuit, the module is also equipped with an NS2009 touch screen controller with an I2C interface that can support LCD modules with resistive touch screens.

At the same time, this module is adapted to the BL706 core board of Nanjing Boliu Technology. The core board can be directly connected to the module through pin headers to provide the LCD display function for the BL706 module.

characteristic

• LCD-TFT module supporting 2.4~3.5-inch standard 40Pin line sequence interface
• Supports most LCD control ICs, such as ILI9341, ST7789, ILI9481, ILI9486, ILI9488, etc.
• Onboard IM selection circuit
• Onboard SPI communication pin switching circuit
• Onboard backlight control circuit
• Onboard NS2009 resistive touch screen controller
• The RC components are packaged in 0805, with no components on the back. Convenient for manual welding or SMT
• a power indicator light


Welded finished product

Can be plugged directly into the BL706 core board

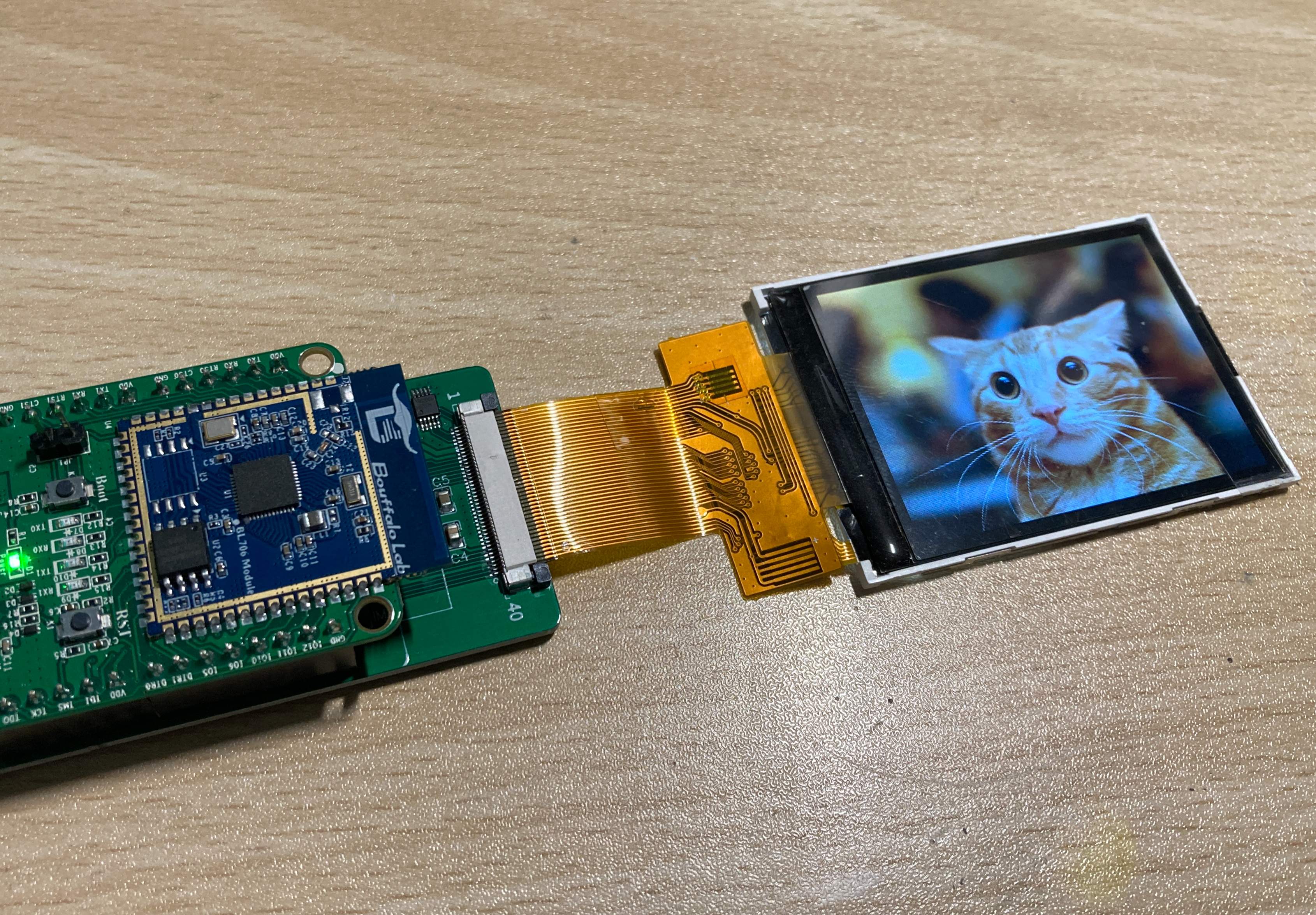

Connect to ILI9341/2.4-inch TFT-LCD
