桂花蒸

Non-standard PCIE 8X C6100

Overview

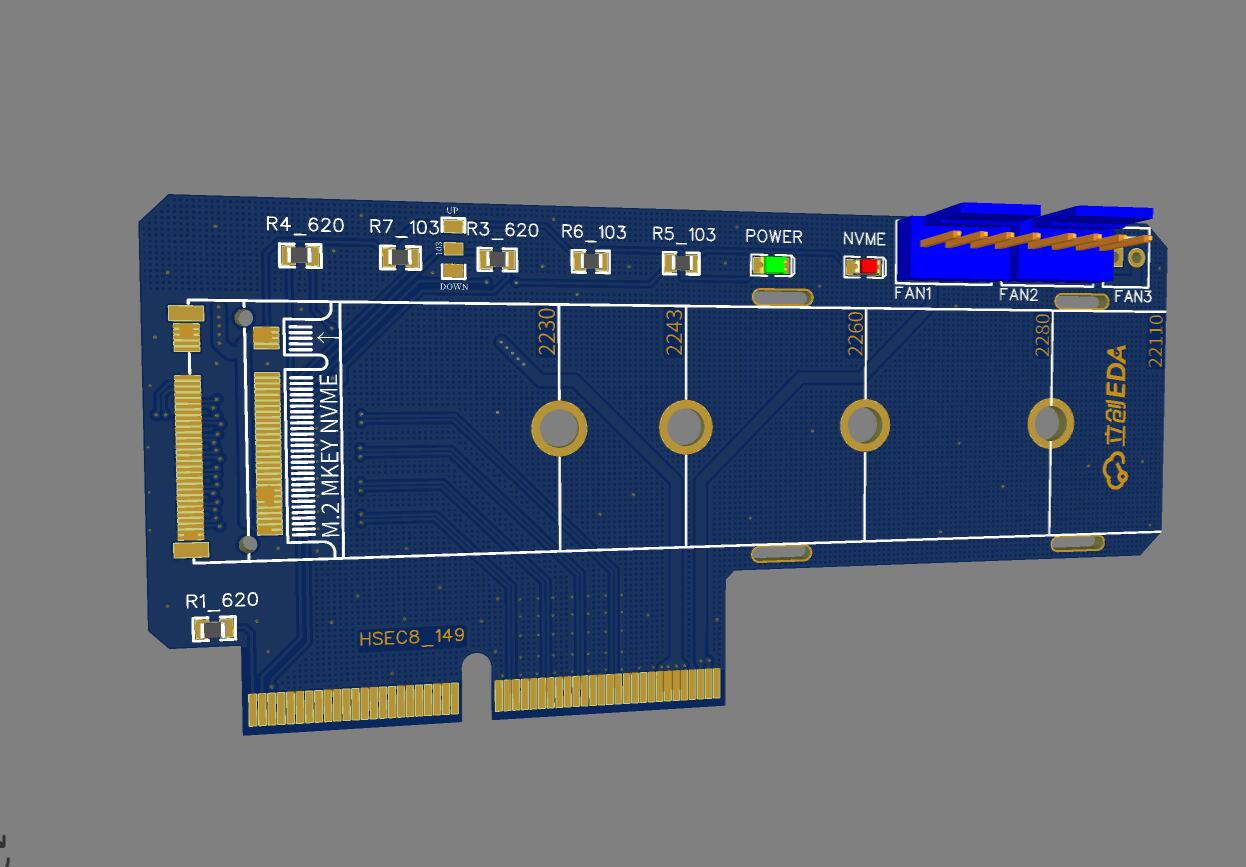

It cannot be used in commercial materials. It is stated that M-KEY 4+5 slot is used on the PCB. It can be used in C6100 C6220 C6320 C8220 SA7200P, etc. Dell's non-standard PCIE X4 X8 slot can be used on the server motherboard. The original slot of the server can be used. Plug in SFP RAID QSFP and other optical port electrical port array cards IMG_0235(1).jpg
